Localization (i18n)
This document describes how localization works in the system and how to add translations for UI elements, dictionaries, and enums.
The system supports localization for:
Basic
To change the interface language, you need to:
- French — log in as a user demo_fr/demo
- English — log in as a user demo/demo
Info
To apply the translation of all elements to the selected language, you must log out and log back in, or refresh the page. Simply switching roles does not fully change the interface language.

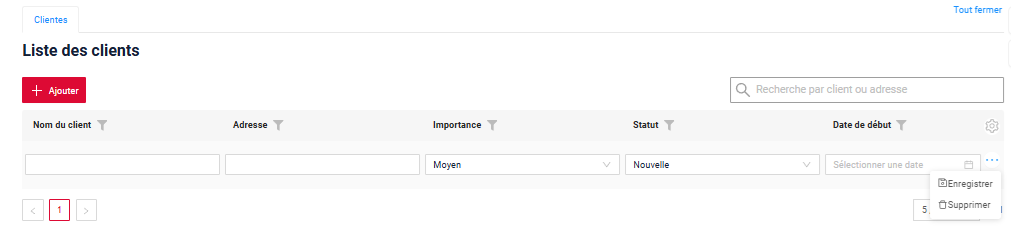

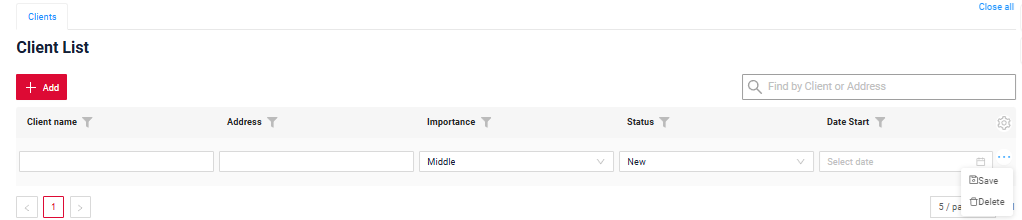

How does it look?
Pre-setup for Working with Localization
Example
It is necessary to configure the correct language transfer.
The language is determined using:
Step 1. Add custom DynamicLocaleResolver to ApplicationConfig.java
Step 2. Add enum SupportedLanguages@RequiredArgsConstructor
@Getter
public enum SupportedLanguages {
ENGLISH(Locale.ENGLISH),
FRENCH(Locale.FRENCH);
private final Locale locale;
public static @NonNull Locale getDefaultLocale() {
return SupportedLanguages.ENGLISH.getLocale();
}
}
Below is an example of how to configure token parsing and retrieve the locale for each user from Keycloak.
Setting Keycloak
public class DynamicLocaleResolver extends AcceptHeaderLocaleResolver {
@NotNull
@Override
public Locale resolveLocale(@NotNull HttpServletRequest request) {
Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
if (authentication == null || !(authentication.getPrincipal() instanceof Jwt jwt)) {
return SupportedLanguages.getDefaultLocale();
}
return resolveFromJwt(jwt);
}
private Locale resolveFromJwt(Jwt jwt) {
String localeClaim = jwt.getClaimAsString("locale");
if (localeClaim == null || localeClaim.isBlank()) {
return SupportedLanguages.getDefaultLocale();
}
return SupportedLanguages.FRENCH.getLocale().getLanguage().equals(localeClaim.toLowerCase()) ?
SupportedLanguages.FRENCH.getLocale() :
SupportedLanguages.getDefaultLocale();
}
}
LocaleContextHolder.getLocale().getLanguage()
or, when using the system locale:
Locale.getDefault()
If for some reason it is not possible to configure the language correctly using the standard approach, a workaround can be used — set the default locale when the application starts:
@SpringBootApplication
@ConfigurationPropertiesScan("org.demo.conf")
public class Application {
public static void main(String[] args) {
Locale.setDefault(new Locale("ru"));
SpringApplication.run(Application.class, args);
}
}
⚠️ Using Locale.setDefault(...) changes the locale for the entire JVM process, so this approach is recommended only as a temporary solution or for single-locale systems.
To work with localization, perform pre-setup on both front-end and back-end, which is necessary for correct handling of the added language.
Front-end:
see more Global Static Text (Front-end)
Step 1
Add a translation file to ui/src/i18n/assets/fr.json containing the translations.
In ui/src/i18n/assets, we already have an en.json file with translations used for the UI.
For a new language, it is sufficient to translate the values into the new language.
Use the following naming format(UTF-8): (fr.json)
Example:
"translation": {
"Clear": "Effacer",
"Copy details to clipboard": "Copier les détails dans le presse-papiers",
"Details": "Détails",
"Error": "Erreur",
"Errors": "Erreurs"
}
Register the new language to allow the front-end to handle it. 1.0 ui/src/i18n/assets/local/index.ts
import { Resource } from 'i18next'
import en from './en.json'
import fr from './fr.json'
import ru from './ru.json'
export default {
en,
ru,
fr
} as Resource
1.2 Ant supported languages: ui/src/i18n/assets/antd/index.
import { Locale } from 'antd/es/locale-provider'
import { SupportedLanguage } from '../../constants'
import enUs from 'antd/es/locale-provider/en_US'
import ruRu from 'antd/es/locale-provider/ru_RU'
import frFr from 'antd/es/locale-provider/fr_FR'
export default { en: enUs, ru: ruRu, fr: frFr } as { [key in SupportedLanguage]: Locale }
Info
Since release 2.0.18: The frontend automatically detects the user's language: /login parameter language
Before release 2.0.18: Additional frontend development was required to retrieve the user's language. Without this customization, the frontend used a predefined constant.
Back-end:
see more Static Text: Widget / View / Screen
Step 1
Create translation files for Static Text: Widget / View / Screen in: src/main/resources/ui/
Use the following naming format(UTF-8): (messages_
Step 2 Add supported languages.
Add to application.yml :
Static Text
Static localization is used for interface labels, titles, buttons, messages, and other UI text that does not come from business data.
Static Text: Global(Front-end)
This includes common UI labels shared across the entire interface(standard Cxbox buttons, operations, and validation errors handled on the UI side).
Stored on the front-end: translation file to ui/src/i18n/assets/
Examples
How does it look?
How to add?
Example
Add a translation file to ui/src/i18n/assets/fr.json containing the translations.
Static Text: Widget / View / Screen
This includes text defined directly in configuration files:
- *.widget.json
- *.view.json
- *.screen.json
Such text may include: Titles, Labels, Any custom text specified directly in JSON
Localization is applied by using translation keys instead of hardcoded text.
Use {{ui.client.name}}
Examples Localization
Field Labels
Field labels define how fields are displayed on screens.
How does it look?
How to add?
Example
Step 1
Use a translation key in screen JSON: ui.client.name
{
"name": "clientList",
"title": "",
"type": "List",
"bc": "myexample",
"fields": [
{
"title": "{{ui.client.name}}",
"key": "fullName",
"type": "input",
"width": 300
},
{
"title": "{{ui.address}}",
"key": "address",
"type": "input",
"width": 300
},
{
"title": "{{ui.importance}}",
"key": "importance",
"type": "dictionary",
"width": 300
},
{
"title": "{{ui.status}}",
"key": "status",
"type": "dictionary",
"width": 300
},
{
"title": "{{ui.client.date.start}}",
"key": "dateStart",
"type": "date"
}
],
"options": {
"export": {
"enabled": true,
"title": "{{ui.client}}"
},
"fullTextSearch": {
"enabled": true,
"placeholder": "{{ui.client.find.placeholder}}"
},
"filterSetting": {
"enabled": true
},
"actionGroups": {
"include": [
"delete",
"create",
"save"
]
}
}
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Use recommended key prefixes:
ui.*— UI texts

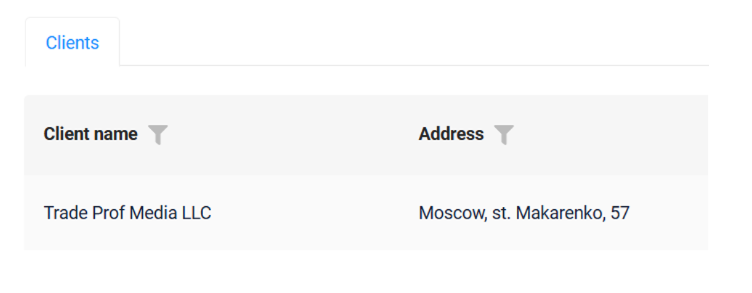

View Titles
Screen titles define the name of a view in the UI.
How does it look?
How to add?
Example
Step 1
Define title in screen JSON: ui.view.clients
{
"name": "clientlist",
"title": "Client List",
"template": "DashboardView",
"url": "/screen/client/view/clientlist",
"widgets": [
{
"widgetName": "SecondLevelMenu",
"position": 0,
"gridWidth": 24
},
{
"widgetName": "clientListHeader",
"position": 2,
"gridWidth": 24
},
{
"widgetName": "clientList",
"position": 20,
"gridWidth": 24
}
],
"rolesAllowed": [
"CXBOX_FR_USER",
"ADMIN"
]
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Use recommended key prefixes:
ui.*— UI texts
Screen Titles
Screen titles define the name of a screen in the UI.
How does it look?
How to add?
Example
Step 1
Define title in screen JSON: ui.screen.clients
{
"name": "client",
"icon": "team",
"order": 0,
"title": "{{ui.screen.screenname}}",
"navigation": {
"type": "standard",
"menu": [
{
"title": "{{ui.view.clients}}",
"child": [
{
"viewName": "clientlist"
}
]
}
]
}
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Use recommended key prefixes:
ui.*— UI texts

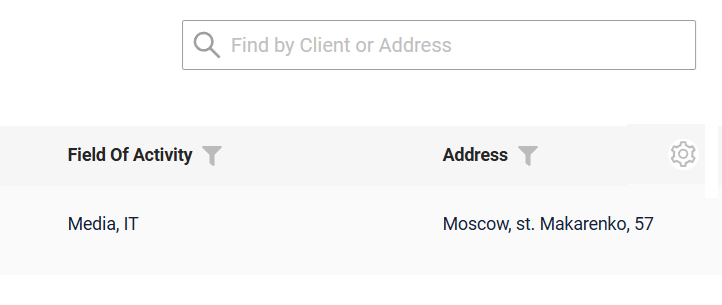

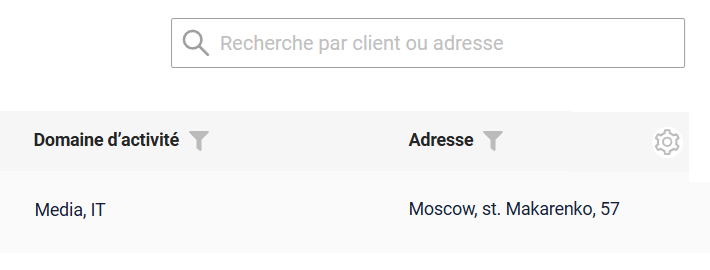

FullTextSearch placeholder
How does it look?
How to add?
Example
Step 1
Use a translation key in screen JSON: ui.client.find.placeholder
{
"name": "clientList",
"title": "",
"type": "List",
"bc": "myexample",
"fields": [
{
"title": "{{ui.client.name}}",
"key": "fullName",
"type": "input",
"width": 300
},
{
"title": "{{ui.address}}",
"key": "address",
"type": "input",
"width": 300
},
{
"title": "{{ui.importance}}",
"key": "importance",
"type": "dictionary",
"width": 300
},
{
"title": "{{ui.status}}",
"key": "status",
"type": "dictionary",
"width": 300
},
{
"title": "{{ui.client.date.start}}",
"key": "dateStart",
"type": "date"
}
],
"options": {
"export": {
"enabled": true,
"title": "{{ui.client}}"
},
"fullTextSearch": {
"enabled": true,
"placeholder": "{{ui.client.find.placeholder}}"
},
"filterSetting": {
"enabled": true
},
"actionGroups": {
"include": [
"delete",
"create",
"save"
]
}
}
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Use recommended key prefixes:
ui.*— UI texts
Static Text: Defined in Java
This includes UI text created on the backend, such as:
- Button captions
- Popup messages
- Validation messages
- etc
Warning
It is important to distinguish statistics from data that are also passed from Java. By data, we mean values that can change (by a user, via the admin UI, etc.) and/or for which additional features are available—such as search, sorting, full-text search, and so on. As a result, Static Text: Defined in Java only require translating the value immediately before it is sent to the front end, anywhere in Java, using the corresponding expression. Data, on the other hand, must support editing, searching, and sorting. Therefore, a task of reverse translation is added—converting the localized value received from the UI back to its internal representation. This is a more complex problem and will be discussed in section Data Localization.
The translation can be performed at any place in Java code where the value is prepared for the UI. Use method LocalizationFormatter.uiMessage("action.add")
Examples Localization

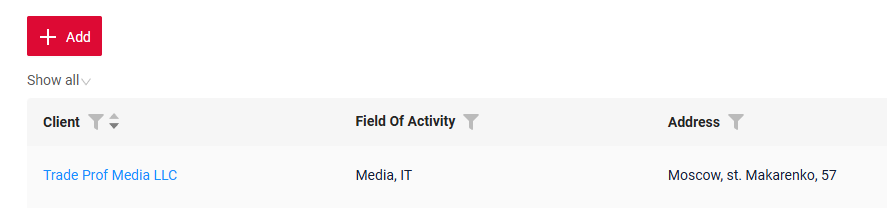

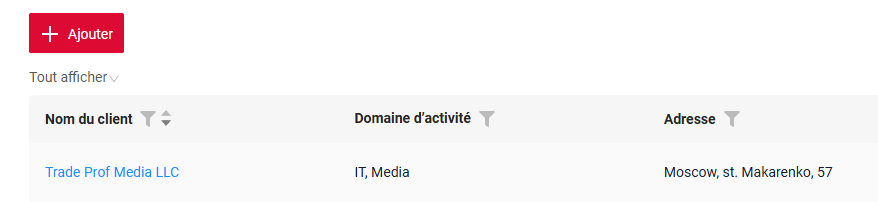

Actions
How does it look?
How to add?
Example
Step 1
Add translation LocalizationFormatter.uiMessage() to button
@Override
public Actions<MyexampleDTO> getActions() {
return Actions.<MyexampleDTO>builder()
.save(sv -> sv.text(LocalizationFormatter.uiMessage("action.save")))
.cancelCreate(ccr -> ccr.text(LocalizationFormatter.uiMessage("action.cancel")).available(bc -> true))
.create(crt -> crt.text(LocalizationFormatter.uiMessage("action.add")))
.delete(dlt -> dlt.text(LocalizationFormatter.uiMessage("action.delete")))
.build();
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Use recommended key prefixes:
action.*— buttons and actions
Business Exception messages
How does it look?
How to add?
Example
Step 1
Add translation LocalizationFormatter.uiMessage() to button
@Override
protected ActionResultDTO<MyexampleDTO> doUpdateEntity(Myexample entity, MyexampleDTO data, BusinessComponent bc) {
if (data.isFieldChanged(MyexampleDTO_.dateStart)) {
LocalDateTime sysdate = LocalDateTime.now();
if (data.getDateStart() != null && sysdate.compareTo(data.getDateStart()) > 0) {
throw new BusinessException().addPopup(LocalizationFormatter.uiMessage("business.exception.less.current.date"));
}
entity.setDateStart(data.getDateStart());
}
setIfChanged(data, MyexampleDTO_.status, entity::setStatus);
setIfChanged(data, MyexampleDTO_.importance, entity::setImportance);
setIfChanged(data, MyexampleDTO_.address, entity::setAddress);
setIfChanged(data, MyexampleDTO_.fullName, entity::setFullName);
return new ActionResultDTO<>(entityToDto(bc, myexampleRepository.save(entity)))
.setAction(PostAction.refreshBc(bc));
}
Step 2
Add translation to src/main/resources/ui/messages_fr.properties:
Data Localization
Warning
By 'data' mean information that can be modified (by users, via the admin panel, etc.) and/or supports additional functions such as search, sorting, full-text search, etc. The LocalizationFormatter.uiMessage() function performs translation in one direction only, while data requires editing, search, full-text search, and sorting capabilities. Since this function does not support reverse translation, we do not recommend using LocalizationFormatter.uiMessage() for data

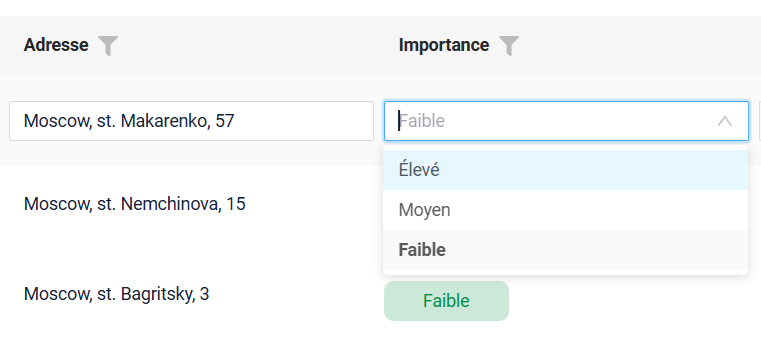

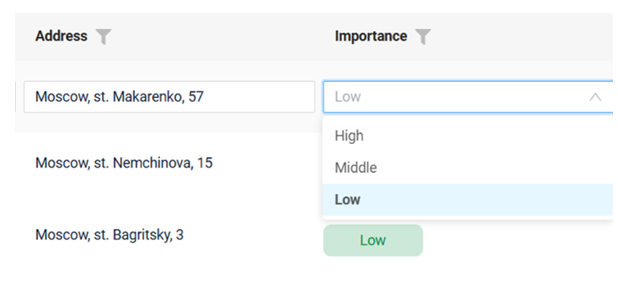

Enum

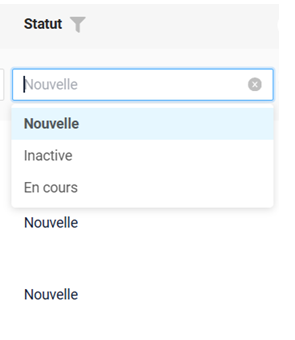

How does it look?
How to add?
Example
Step 1 Add PlatformLocaleEnum.java to /conf/cxbox/extension/locale
package org.demo.conf.cxbox.extension.locale;
import com.fasterxml.jackson.annotation.JsonCreator;
import com.fasterxml.jackson.annotation.JsonValue;
import lombok.NonNull;
import org.springframework.context.i18n.LocaleContextHolder;
import java.util.HashMap;
import java.util.Locale;
import java.util.Map;
import java.util.function.Supplier;
/**
* <b>Dont change this class</b>
* Candidate to move cxbox core
* Interface for enums
*/
public interface PlatformLocaleEnum<E extends Enum<E> & PlatformLocaleEnum<E>> {
Map<Locale, Supplier<@NonNull String>> translations();
/**
* Converts this enum constant to its string representation based on the current locale.
*/
@JsonValue
default String toValue() {
return toValue(this);
}
/**
* Creates an enum constant from its string representation.
*/
@JsonCreator
@SuppressWarnings("unchecked")
default E fromValue(@NonNull String value) {
return fromValue((Class<E>) this.getClass(), value);
}
/**
* Converts this enum constant to its string representation based on the current locale.
* <p>
* Serialization logic. The current locale is obtained
* from {@link LocaleContextHolder}. If no translation exists for the current locale,
* the first available translation is used as a fallback.
* </p>
*
*/
static <E extends Enum<E> & PlatformLocaleEnum<E>> String toValue(
@NonNull PlatformLocaleEnum<E> e
) {
Locale locale = LocaleContextHolder.getLocale();
return e.translations()
.getOrDefault(
locale,
e.translations().values().stream().findFirst().orElseThrow()
)
.get();
}
/**
* Creates an enum constant of the specified type from its string representation.
* <p>
* Deserialization logic. It builds
* a reverse lookup map from all translated values to their corresponding enum constants
* and uses it to find the matching constant.
* </p>
*/
static <E extends Enum<E> & PlatformLocaleEnum<E>> E fromValue(
@NonNull Class<E> enumClass,
@NonNull String value
) {
Map<String, E> map = new HashMap<>();
for (E e : enumClass.getEnumConstants()) {
for (var entry : e.translations().entrySet()) {
if (entry != null && entry.getValue() != null) {
map.put(entry.getValue().get(), e);
}
}
}
return map.get(value);
}
}
package org.demo.conf.cxbox.extension.locale;
import lombok.Getter;
import lombok.NonNull;
import lombok.RequiredArgsConstructor;
import java.util.Locale;
/**
* Enumeration of locales supported by the application.
* <p>
* For correct operation of a locale, ensure the following steps are properly configured:
*
* <p><b>Backend:</b></p>
* <ul>
* <li>Register the locale in this enum by adding a new constant.</li>
* <li>Add the locale code to {@code cxbox.localization.supported-languages} in {@code application.yaml}:
* </li>
* <li>Add resource bundles {@code messages_<code>.properties} in {@code src/main/resources/ui/messages/} for static texts.</li>
* <li>To translate dictionaries and enums:
* <ul>
* <li>For enums: implement a project-level interface (example {@link LocaleEnum},
* that extends the core interface {@link PlatformLocaleEnum}) and provide translations in enum constants that inherit that interface.</li>
* <li>For dictionaries: add new columns in {@code DICTIONARY_ITEM} for the new language,
* and populate {@code dictionary_item_tr} with translations.</li>
* </ul>
* </li>
* </ul>
*
* <p>
* Important: instruction written for cxbox version >= 2.0.18.
* For older versions, see <a href="https://github.com/CX-Box/cxbox-demo/pull/606">pull request</a> and change/add required file
* <b>Frontend:</b>
* </p>
* <ul>
* <li>Add a translation file {@code <code>.json} in {@code ui/src/i18n/assets/local/}.</li>
* <li>Register the locale in the following files:
* <ul>
* <li>{@code ui/src/i18n/assets/local/index.ts}</li>
* <li>{@code moment/index.ts} (for date/time formats)</li>
* <li>{@code antd/index.ts} (for Ant Design UI components)</li>
* </ul>
* </li>
* </ul>
*
* <p>See the <a href="https://doc.cxbox.org/features/locale/locale/">official documentation</a>
* for more details.</p>
*
* @see Locale
*/
@RequiredArgsConstructor
@Getter
public enum SupportedLanguages {
ENGLISH(Locale.ENGLISH),
FRENCH(Locale.FRENCH);
private final Locale locale;
public static @NonNull Locale getDefaultLocale() {
return SupportedLanguages.ENGLISH.getLocale();
}
}
package org.demo.conf.cxbox.extension.locale;
import java.util.Locale;
import java.util.Map;
import java.util.function.Supplier;
/**
* Adding support for a new language
* Example
* <pre>{@code
* public interface LocaleEnum<E extends Enum<E> & PlatformLocaleEnum<E>>
* extends PlatformLocaleEnum<E> {
*
* String getValue();
* String getValueFr();
* String getValueDe();
*
* @Override
* default Map<Locale, Supplier<String>> translations() {
* return Map.of(
* SupportedLanguages.ENGLISH.getLocale(), this::getValue,
* SupportedLanguages.FRENCH.getLocale(), this::getValueFr,
* SupportedLanguages.GERNANY.getLocale(), this::getValueDe
* );
* }
* }
* }</pre>
*
*/
public interface LocaleEnum<E extends Enum<E> & PlatformLocaleEnum<E>>
extends PlatformLocaleEnum<E> {
String getValue();
String getValueFr();
@Override
default Map<Locale, Supplier<String>> translations() {
return Map.of(
SupportedLanguages.getDefaultLocale(), this::getValue,
SupportedLanguages.FRENCH.getLocale(), this::getValueFr
);
}
}
Dictionary

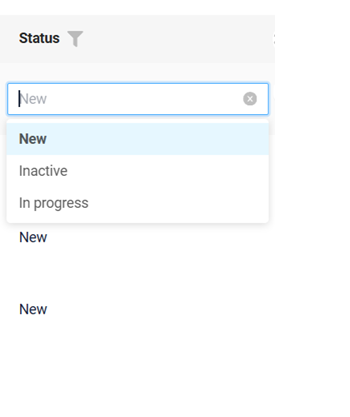

How does it look?
How to add?
Example
It is necessary to populate the dictionary_item_tr table with translated values for each dictionary, adding the value of the newly introduced language in the language column.
Step 1 Add new column VALUE_FR
VALUE_FR in DICTIONARY.csv
TYPE;KEY;VALUE;VALUE_FR;DISPLAY_ORDER;DESCRIPTION;ACTIVE;ID
BRIEFINGS;PROJECT;Project;Projet;1;;;
BRIEFINGS;SECURITY;Security;Sécurité;2;;;
BRIEFINGS;MARKET;Market;Marché;3;;;
Step 3 Add value_fr in insert for dictionary_item_tr
