2.0.14

Key updates June, July 2025

CXBOX (Demo)

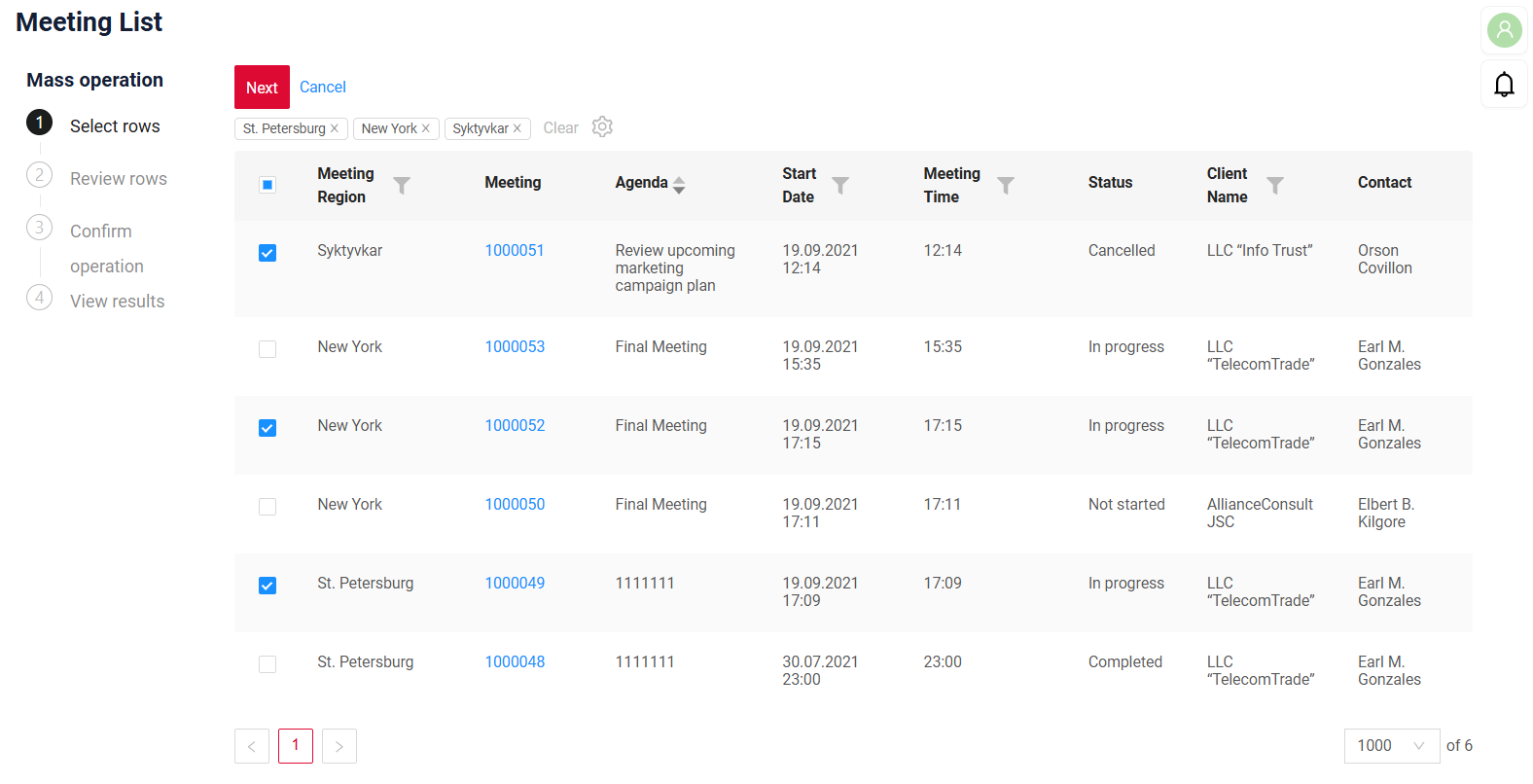

Added: List widget – mass operations (NEW!)

We’ve introduced a new feature that allows you to apply actions to multiple rows at once – mass operations.
This is a special List widget display designed to guide the user through each step of a bulk action.

Mass operations can include the following steps:

Checkboxes appear next to each row. You can select multiple rows, which are then shown as tags above the table. You can also Select from file and upload the rows you want to apply mass operation to.

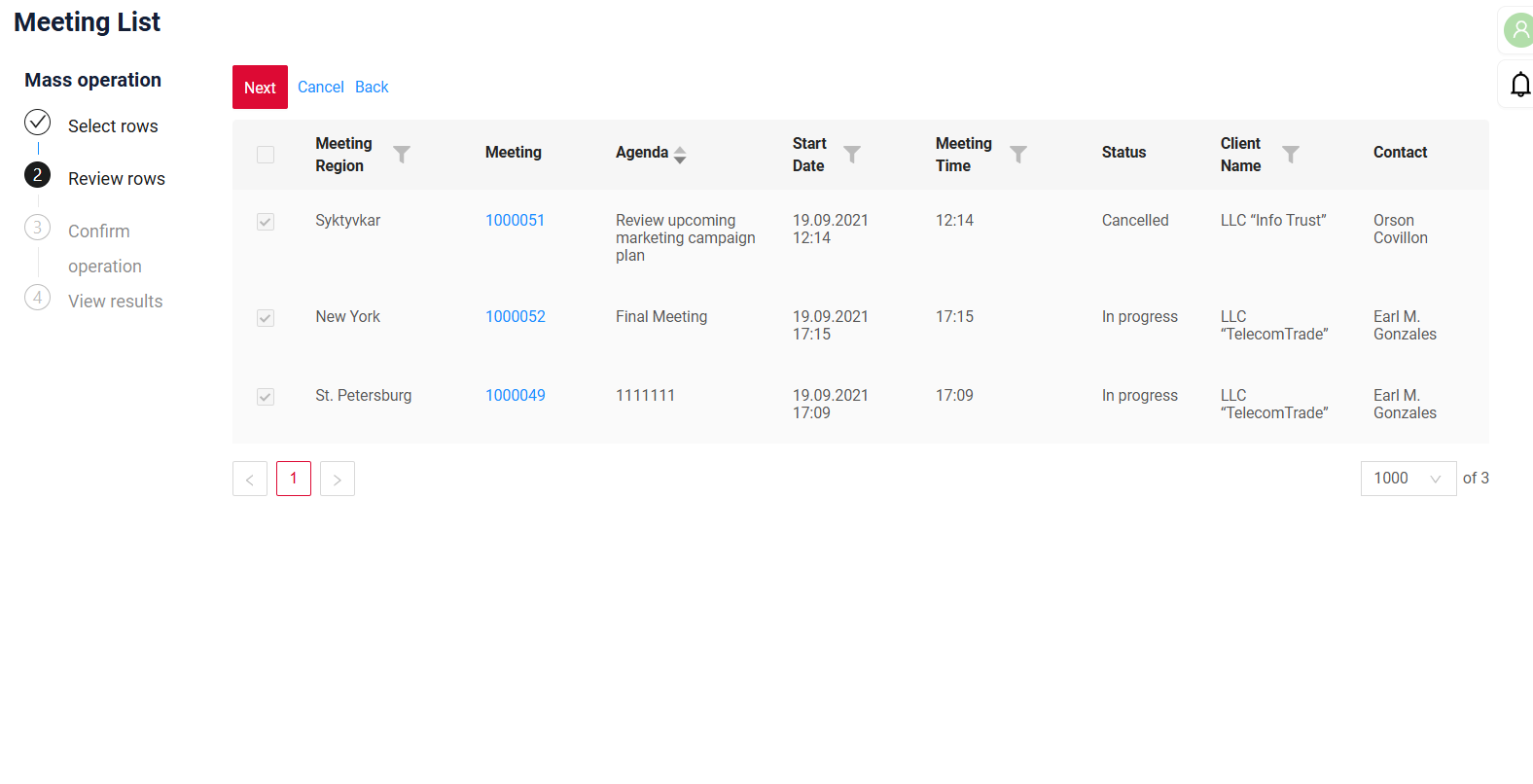

The selected rows are shown in read-only mode, allowing you to double-check your selection before proceeding.

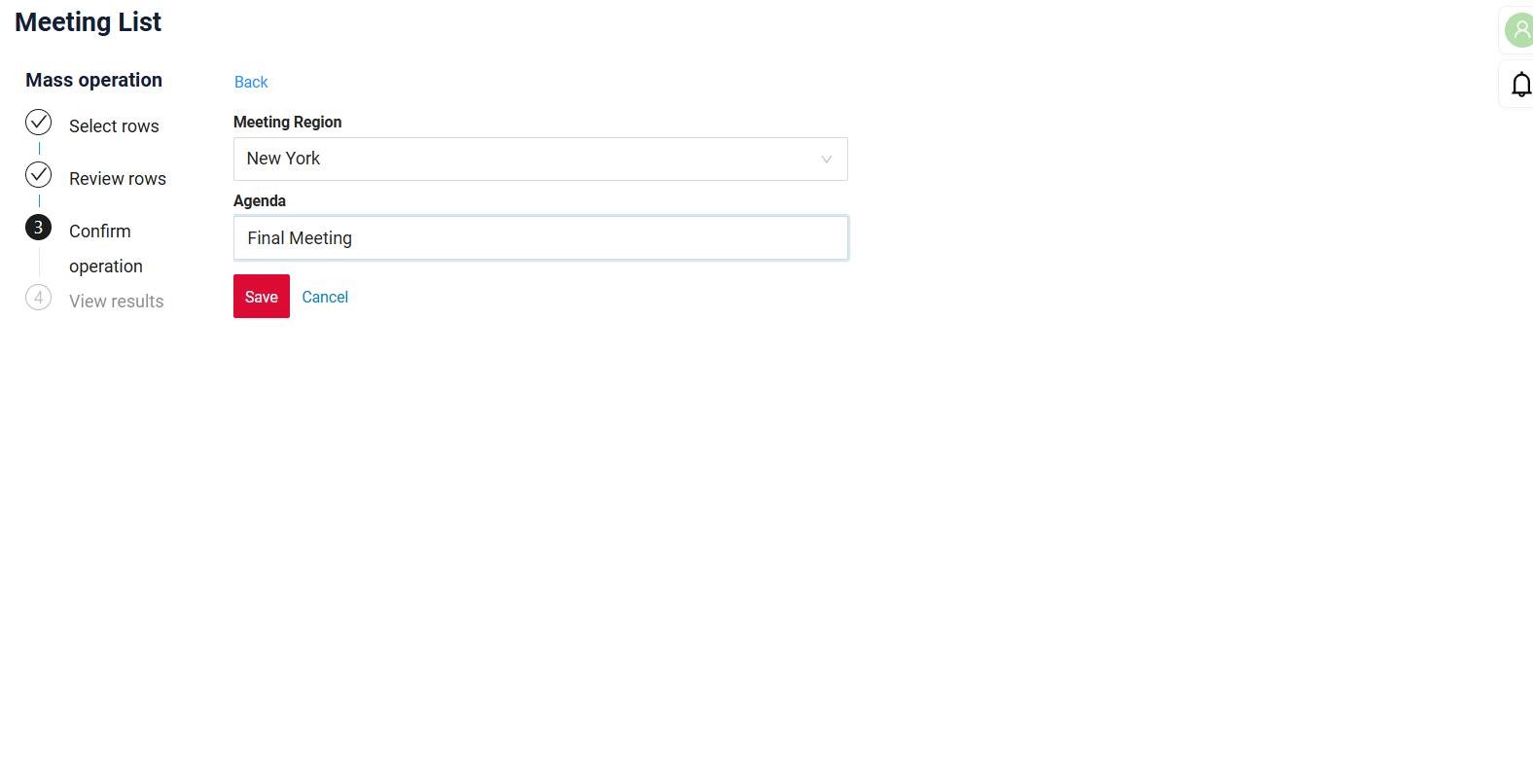

Depending on the operation, this step may be included to provide a form for entering additional required data or just provide a confirmation text.

Info

We recommend to specifically create an additional mass operation field to display it on this step. Otherwise, the query will be sent to the first row in the table and, thus, the field will be pre-filled with the values from the first field.

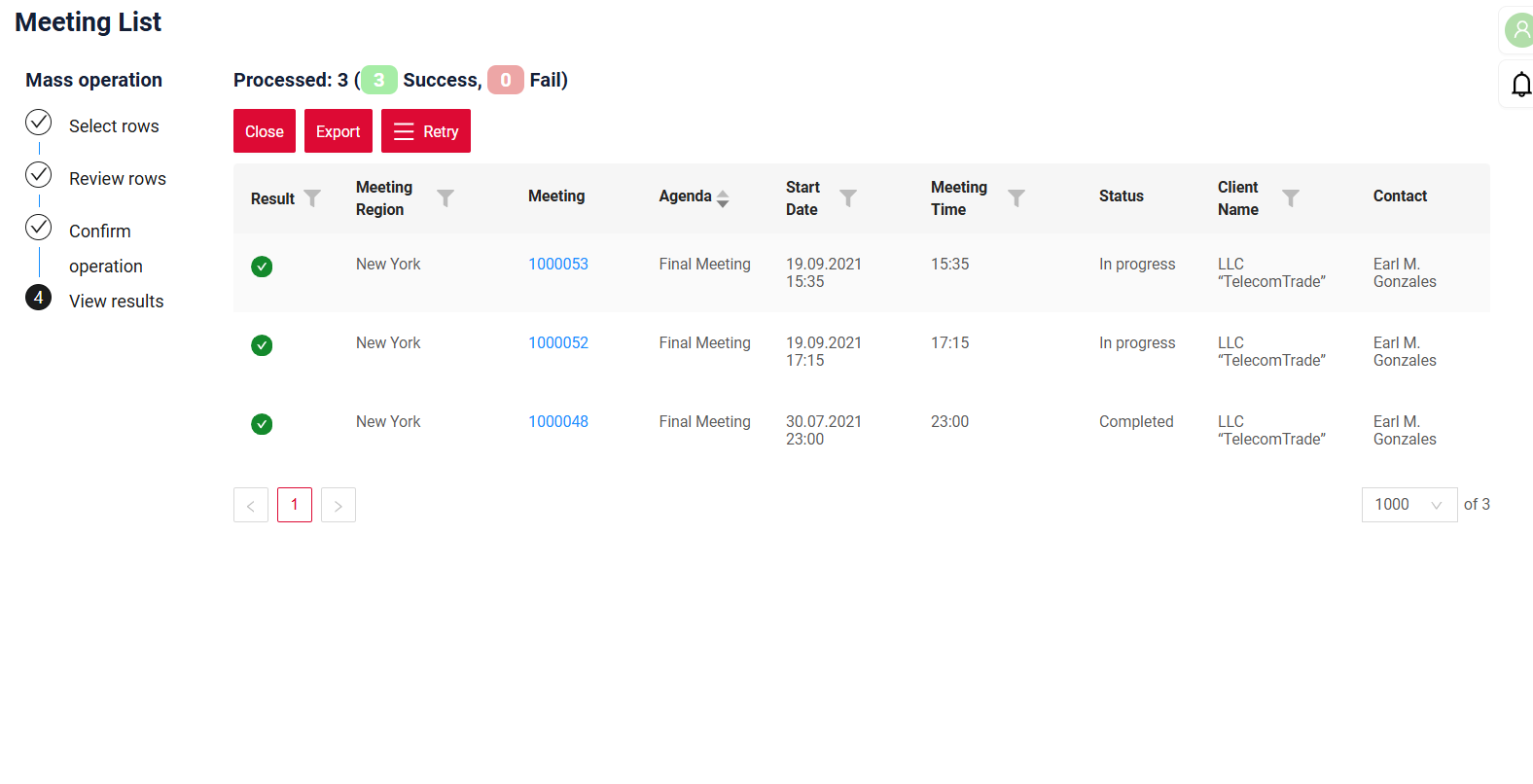

Once the action is complete, you’ll see a summary of results for each row. You can also download the result as an Excel file to work with those rows later during the next bulk operation.

Info

A detailed article on mass operations will be available soon in our official documentation – stay tuned!

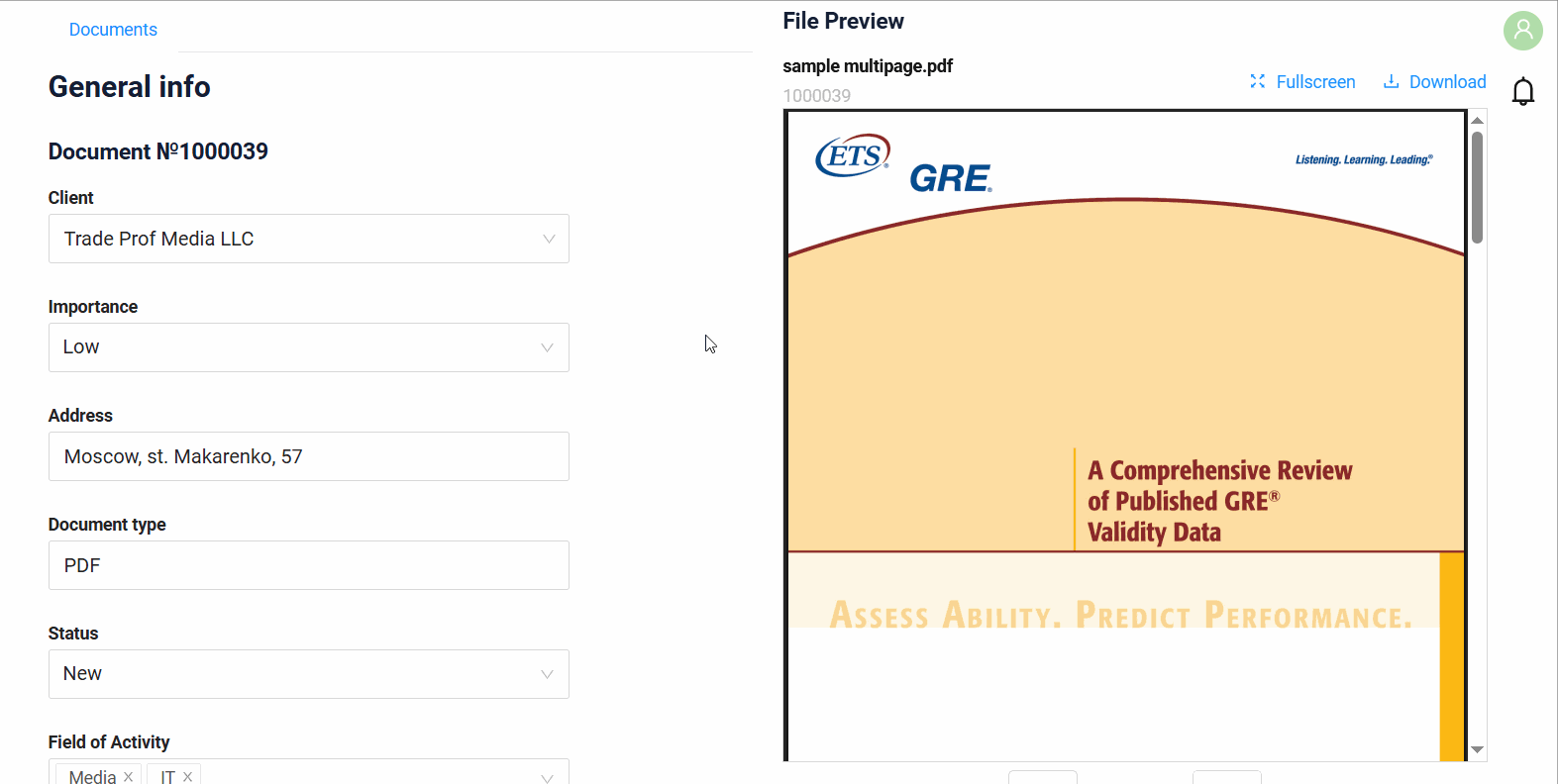

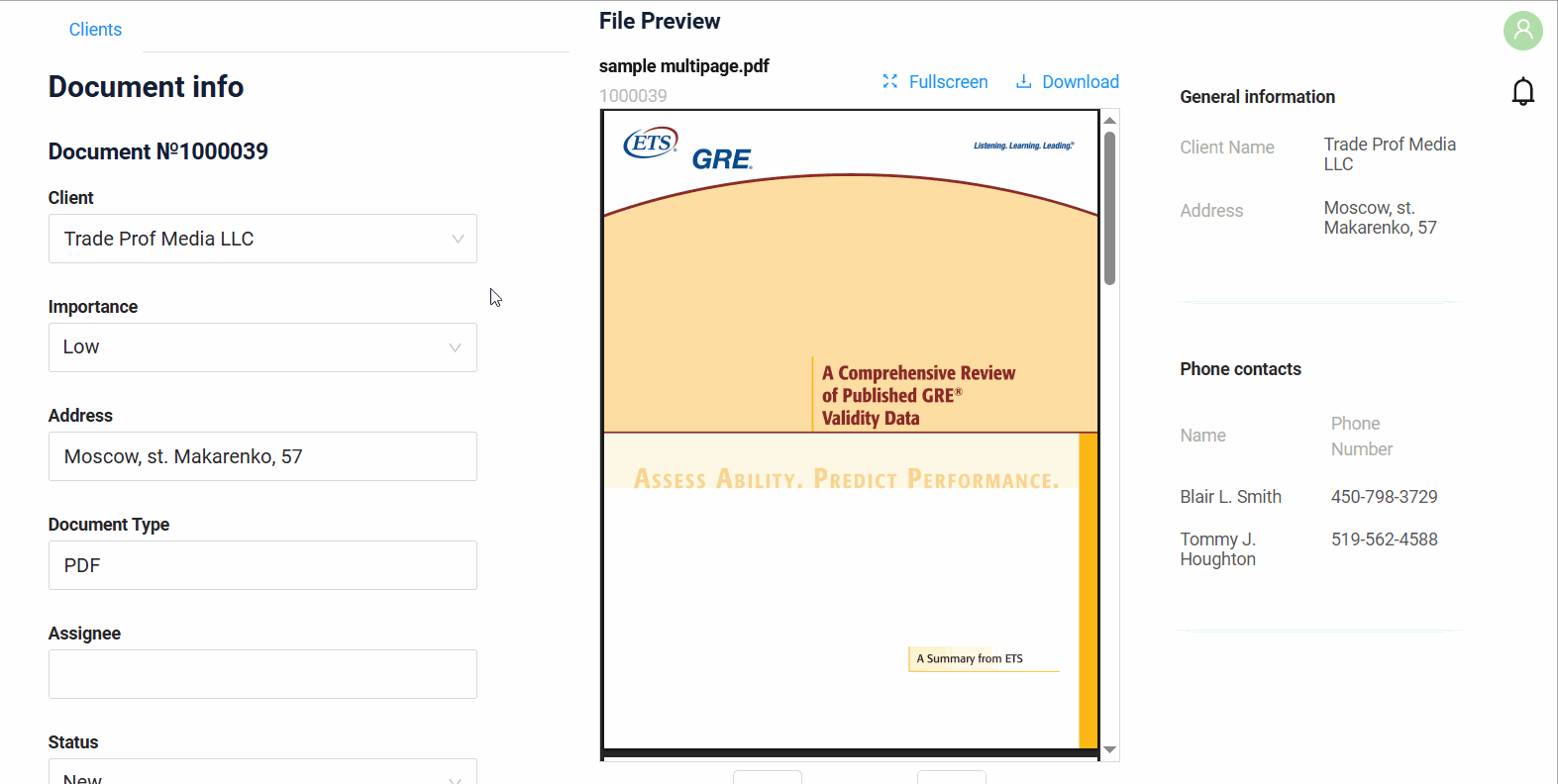

Added: FilePreview widget – NEW widget type!

We’ve introduced a new widget type – FilePreview. It takes up 50% of the main screen area and is placed next to other content. The widget remains fixed at the top while scrolling, keeping the document always visible.

FilePreview supports a new preview mode: inline, which displays the document directly within the page, without opening a popup.

This widget is especially useful for side-by-side document viewing and form editing, making it easier to fill out forms based on the contents of the uploaded file.

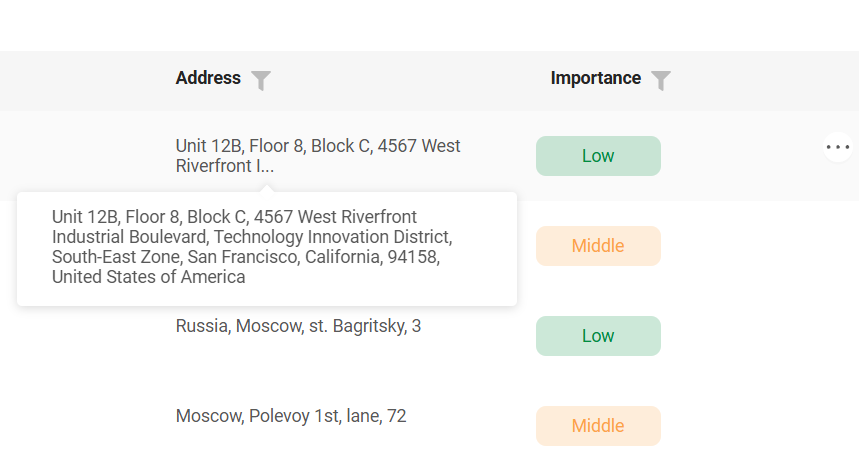

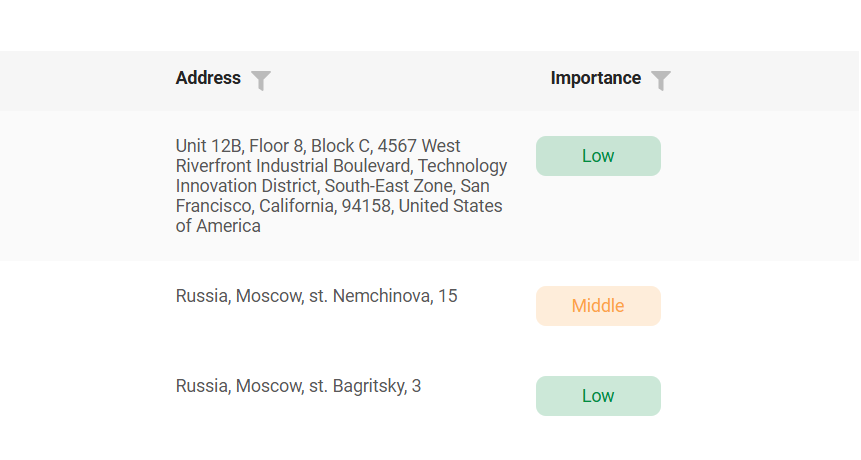

Added: text field – value truncation

We’ve added support for truncating long values in text field using a frontend constant.
If the value exceeds the defined limit, it will be shortened with an ellipsis (...). Hovering over the ellipsis shows the full value in a tooltip.

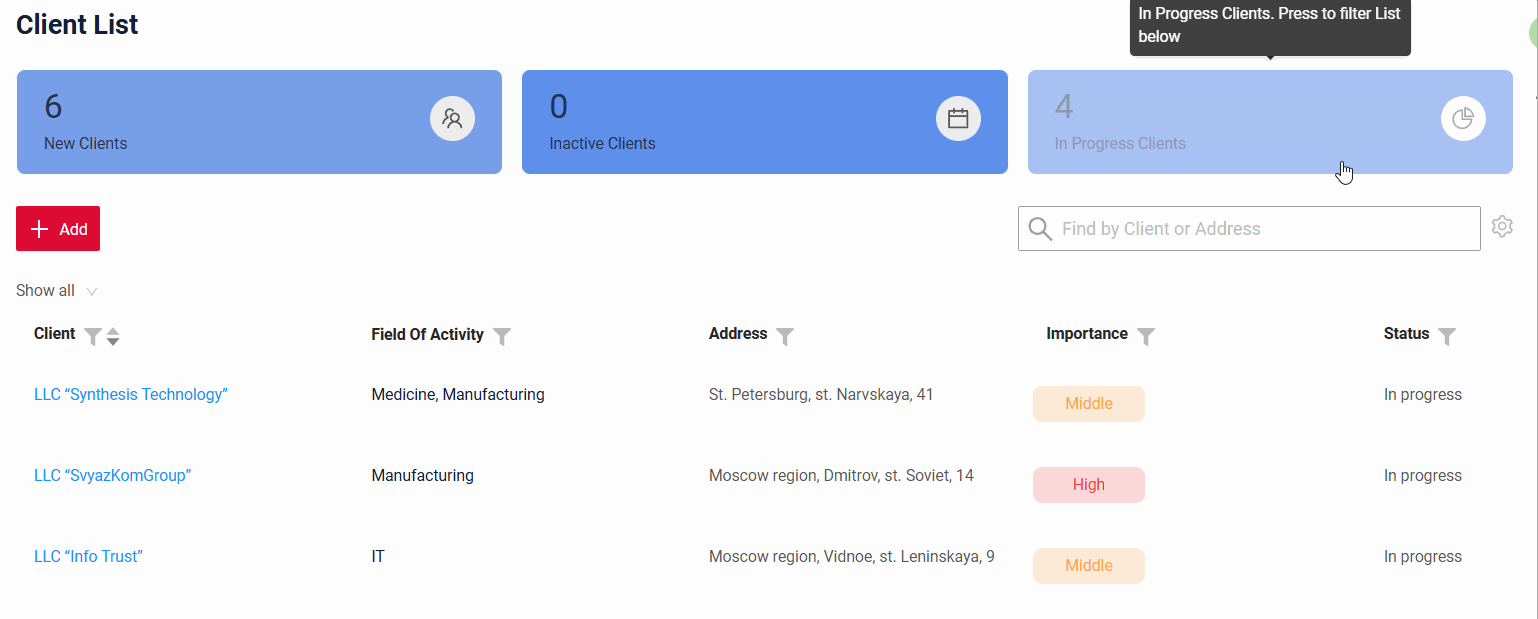

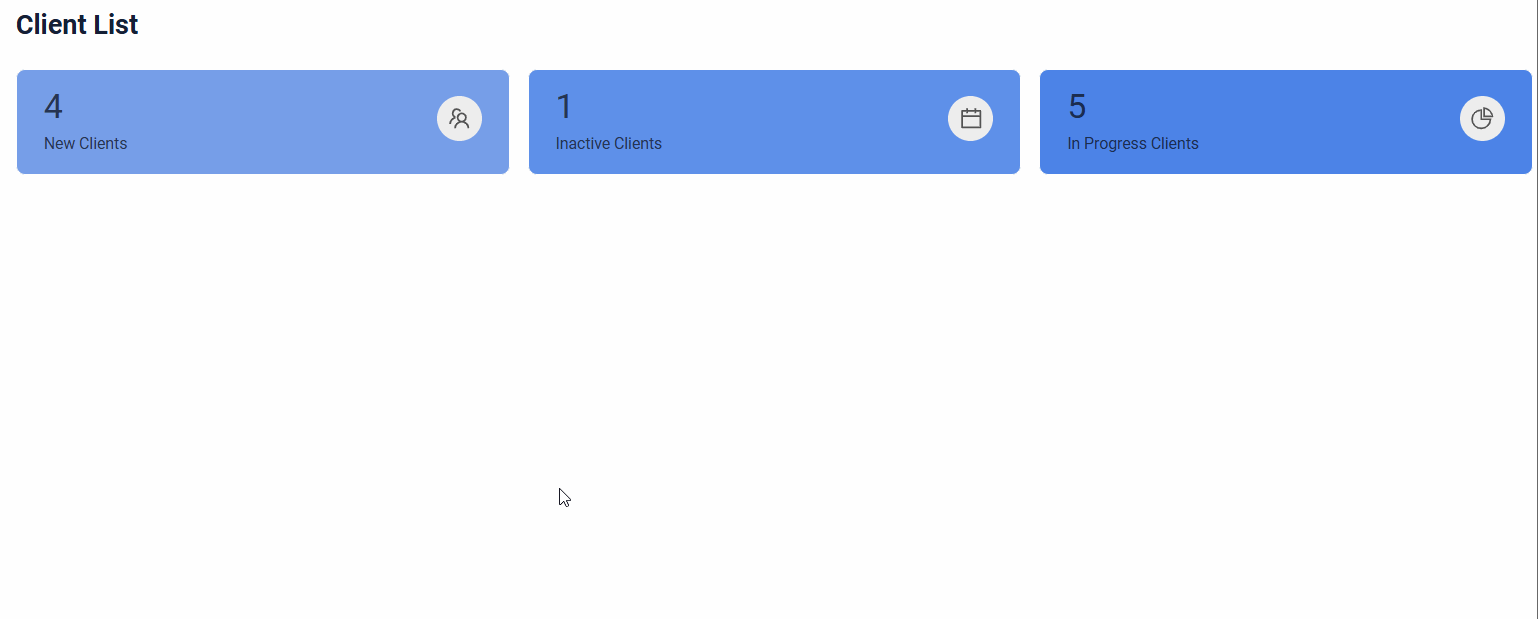

Added: StatsBlock widget – selected block highlighting

We’ve added support for highlighting the selected block in StatsBlock. This makes it easier to understand which block was clicked and which data is currently being displayed. It’s especially useful when StatsBlock is used together with another widget (e.g. List widget).

Info

You can place StatsBlock and List widget either on different views or on the same view. The behavior depends on how they’re configured.

StatsBlock + List widget:

If both widgets are placed on the same view, you can link them via a parent-child relationship, without using any drillDowns. In this case, highlighting is available.

If the widgets are placed on separate views, highlighting is not supported. You can link them only using a drillDown.

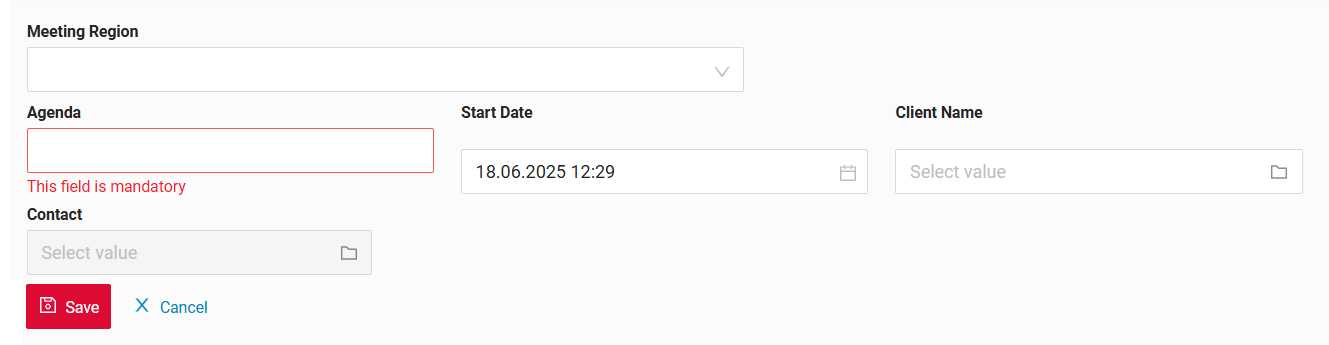

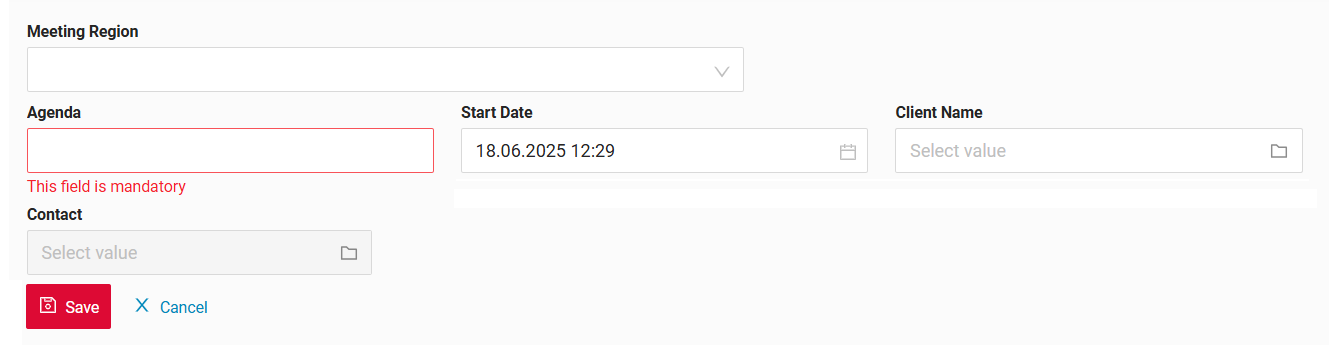

Fixed: Form widget - stable layout on validation

We have corrected layout behavior in multi-column Form widget. Validation messages no longer cause fields to shift. Fields stay aligned, and the overall form structure remains stable and consistent when errors appear.

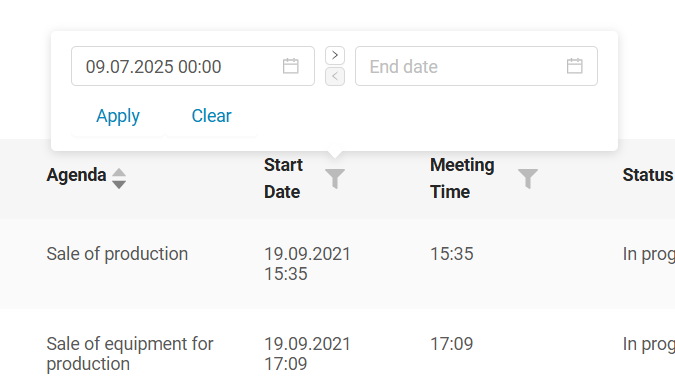

Added: date, dateTime, dateTimeWithSeconds fields – copy buttons in range filter

We’ve improved the range filter for the following field types: date, dateTime, and dateTimeWithSeconds.

The filter already supported “From” and “To” inputs. This time, we’ve added copy buttons to simplify filling both fields:

  • > button – copies the “From” value into “To”
  • < button – copies the “To” value into “From”

These buttons are only active when the source field contains a value.

This update brings the same convenient experience to date-based filters as the one we introduced for number, money, and percent fields in our previous release, 2.0.13.

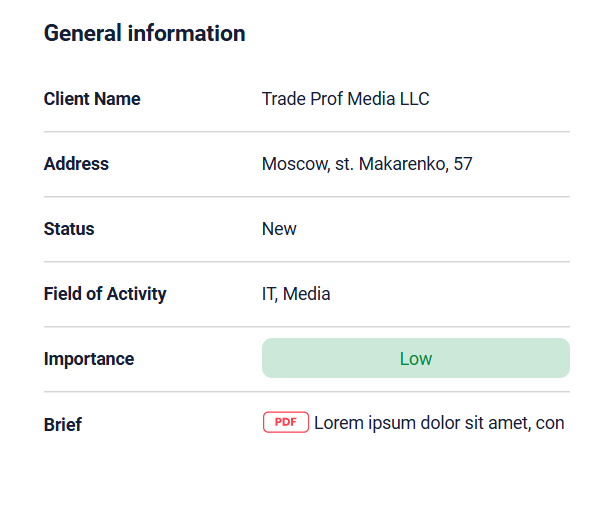

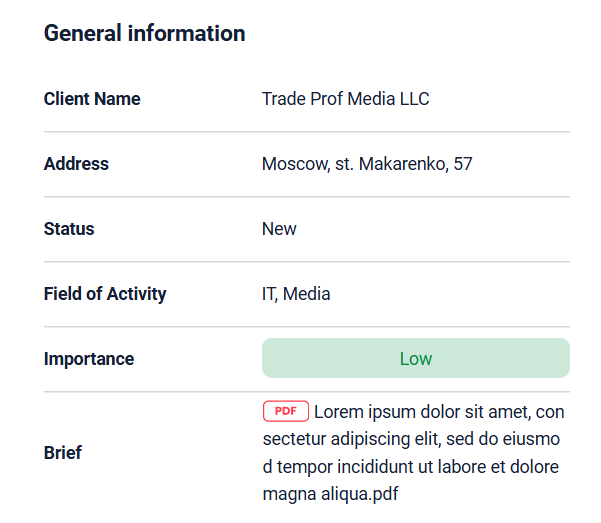

Added: fileUpload field – word wrapping support

Long file names in fileUpload field now wrap automatically and fit within the available space.
The text also wraps around the extension icon, making the layout more compact and readable.

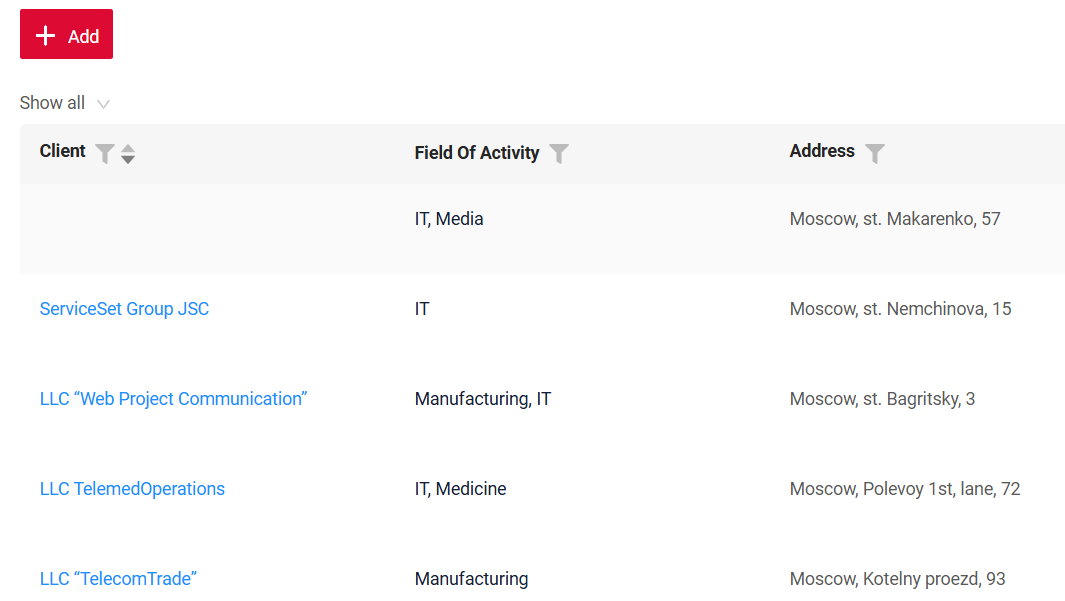

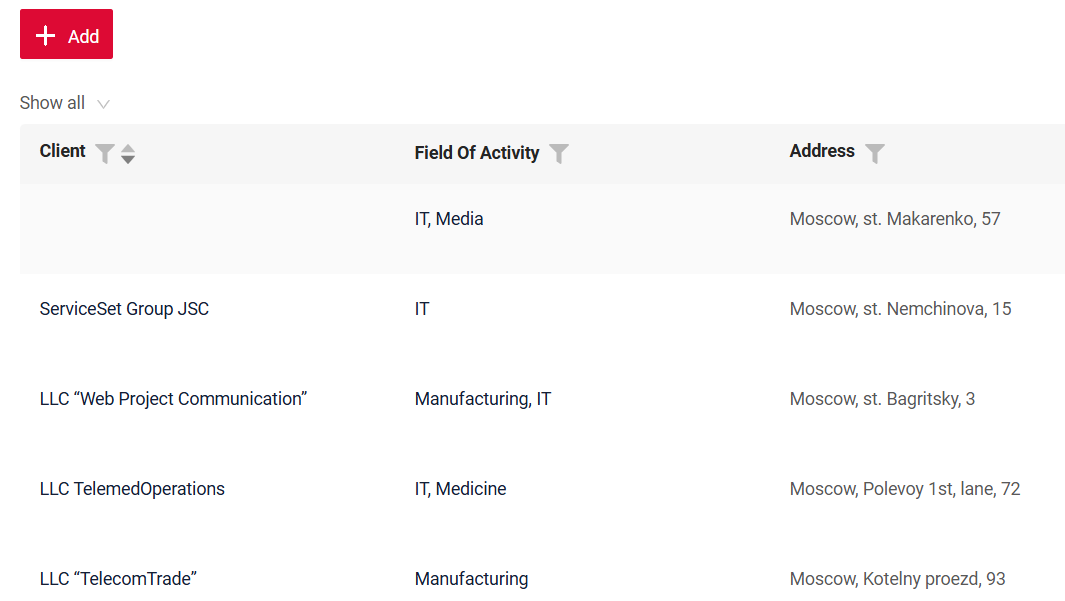

Fixed: drillDown – updated display logic

We’ve updated the drillDown display logic to correctly handle cases where the first row has no value in a drillDown field. DrillDown links now appear for all rows with valid values, regardless of the first row. You can now simply set "drillDown": true in *.widget.json, and the links will be correctly rendered for all applicable rows.



Fixed: Notification counter update

The unread notifications counter (bell icon) now updates automatically after deleting unread messages. It always reflects the current number of unread notifications — including cases when there are none left.

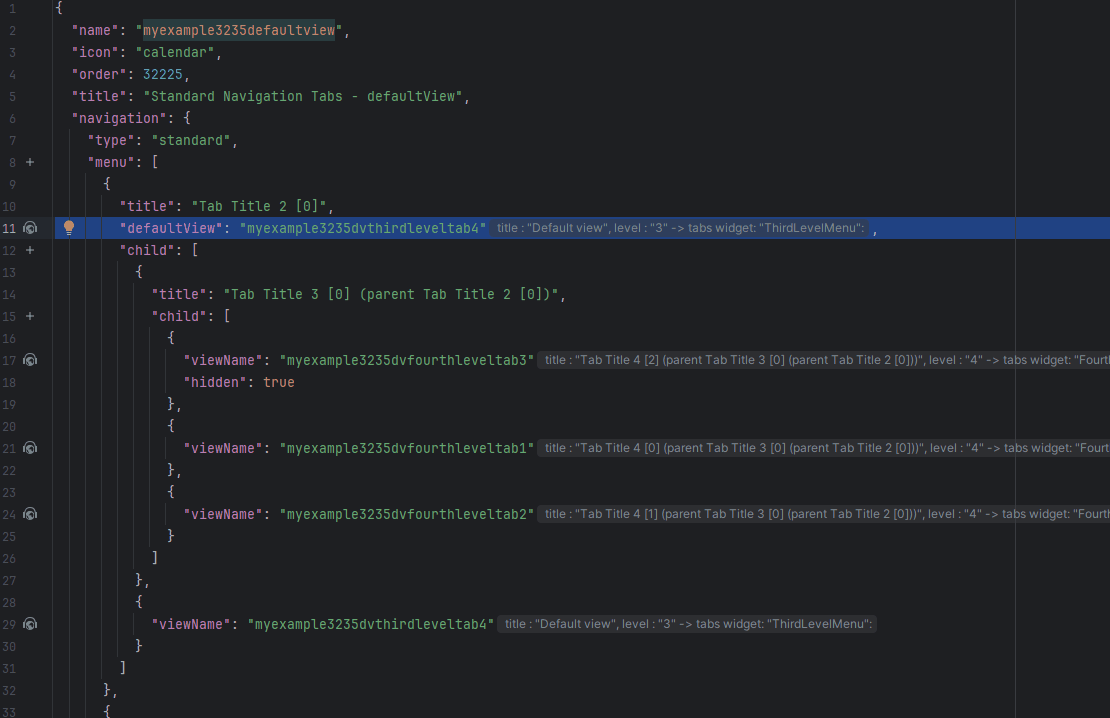

Fixed: FourthLevelMenu widget – correct tab rendering

FourthLevelMenu now shows only tabs from the active screen branch, matching the screen.json structure. Tabs from other branches are no longer displayed outside their defined context.

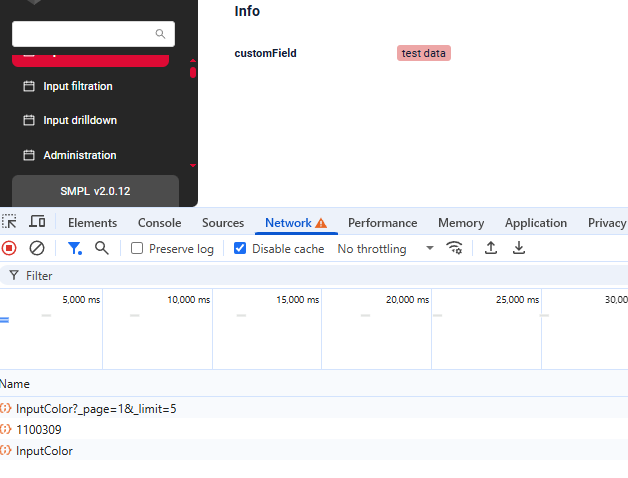

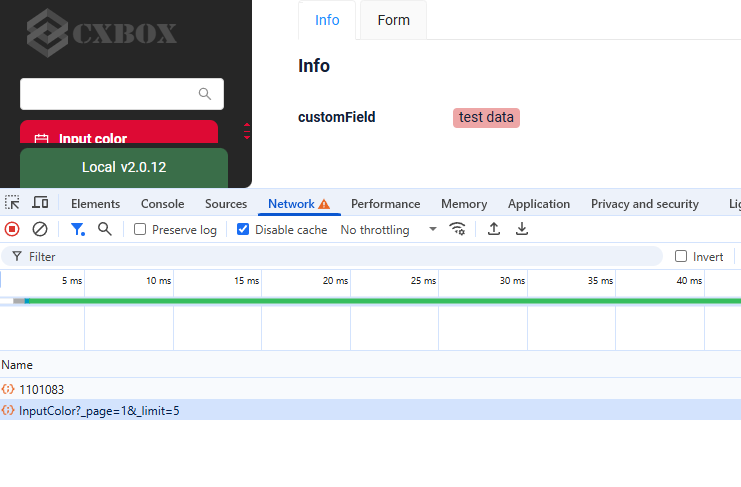

Fixed: Pagination default

The default count mode is set to nextAndPreviousSmart. For the following widget types, the default mode is nextAndPreviousWithCount:

  • List
  • CustomGroupingHierarchy
  • CustomDashboardList
  • AssocListPopup
  • PickListPopup
  • CustomPie1D
  • CustomColumn2D
  • CustomLine2D
  • CustomDualAxes2D

The count query is executed only if at least one widget with mode nextAndPreviousWithCount is present on the screen.

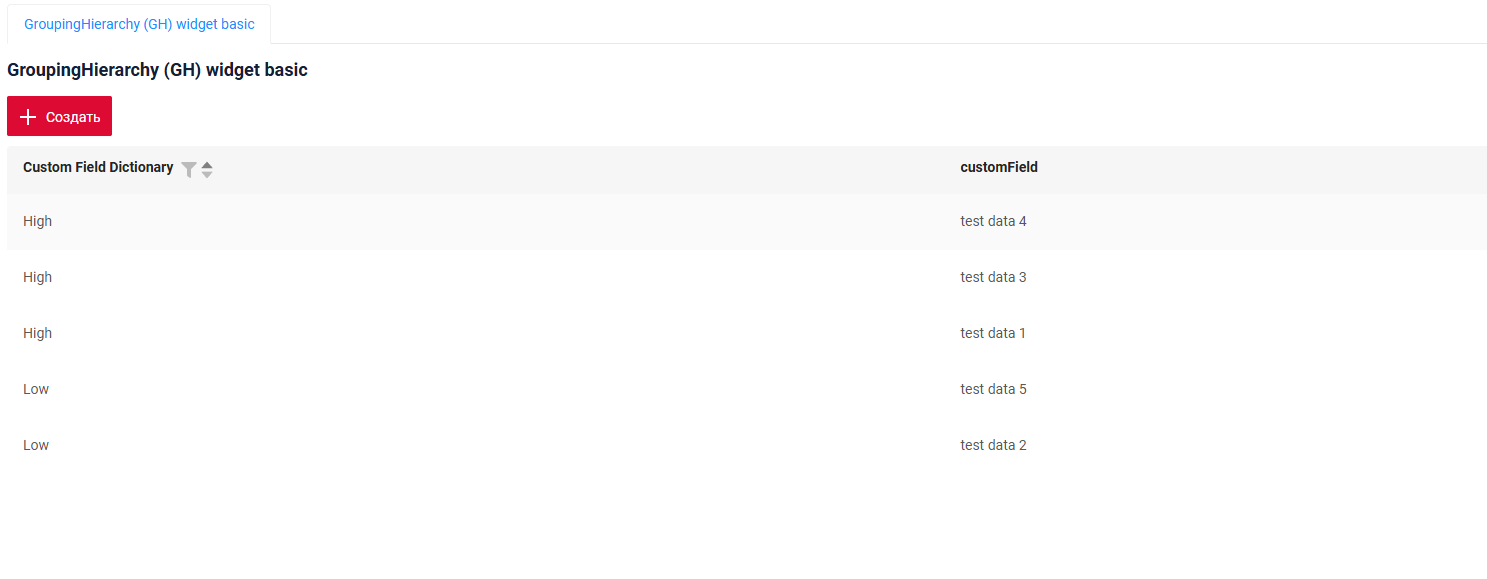

Added: Pagination switch

A new option has been added to options -> pagination in the widget.json configuration, controlling the display of the pagination panel.

Example configuration:

"options": {
  "pagination": {
    "enabled": false
  }
}
  • enabled: false — the pagination panel and limit selector block will not be displayed, regardless of the number of records.
  • enabled: true (or if the option is omitted) — the standard display logic applies, taking defaultPageLimit into account.


Other Changes

see cxbox-demo changelog

CXBOX (Core Ui)

We have released two CORE UI versions - 2.5.4 and 2.6.0!

Added: tag changedNow_ the fields modified in the current user interaction

A new tag, changedNow_, has been introduced. It contains only the fields modified in the current user interaction that have not yet been sent to the backend.



When is changedNow_ sent?

row-meta/ (POST)

  • When the user exits a field that has forceActive = true.
  • When call FormPopup widget
Scenario Meta Builder Called Field Update Triggered
Editing a field with forceActive ✅ Yes ✅ Yes
forceActive → Standard Save button (for fields listed below where row-meta is not triggered until the field is exited) ❌ No ❌ No
forceActive → Custom button (for fields listed below where row-meta is not triggered until the field is exited) ❌ No ❌ No
Opening a FormPopup ✅ Yes ✅ Yes
Clicking only the Standard Save button ❌ No ❌ No
Clicking only a Custom button ❌ No ❌ No
Clicking Delete ❌ No ❌ No (only deletes the record)
Scenario Meta Builder Called Field Update Triggered
Editing a field with forceActive ✅ Yes ✅ Yes
forceActive → Standard Save button (for fields listed below where row-meta is not triggered until the field is exited) ✅ Yes (via /row-meta → followed by save request) Update occurs within the /row-meta event
forceActive → Custom button (for fields listed below where row-meta is not triggered until the field is exited) ✅ Yes (via /row-meta → followed by custom action) Update occurs within the /row-meta event
Opening a FormPopup ✅ Yes ✅ Yes
Clicking only the Standard Save button ❌ No ❌ No
Clicking only a Custom button ❌ No ❌ No
Clicking Delete ❌ No ❌ No (only deletes the record)

Field Type Behavior

Legend:

  • ✅ — forceActive (row-meta) is triggered immediately on value selection.
  • ❌ — row-meta is not triggered until a button is clicked or user leaves the field.
  • noValid — field does not support in-place value changes.
Field Type forceActive triggered immediately? Notes
input ❌ No Triggered on click outside the field or on a button
date ✅ Yes
dateTime ✅ Yes
dateTimeWithSeconds ✅ Yes
number ❌ No Triggered on click outside the field or on a button
percent ❌ No Triggered on click outside the field or on a button
hidden noValid Not editable
text ❌ No Triggered on click outside the field or on a button
radio ✅ Yes
checkbox ✅ Yes
money ❌ No
dictionary ✅ Yes
fileUpload ✅ Yes
pickList ✅ Yes
inlinePickList ✅ Yes Save only triggered if an item is picked
hint noValid Not editable
multifield ✅ Yes
multivalueHover noValid Not editable
multivalue ✅ Yes
multipleSelect ✅ Yes
suggestionPickList ✅ Yes Save only triggered if an item is picked

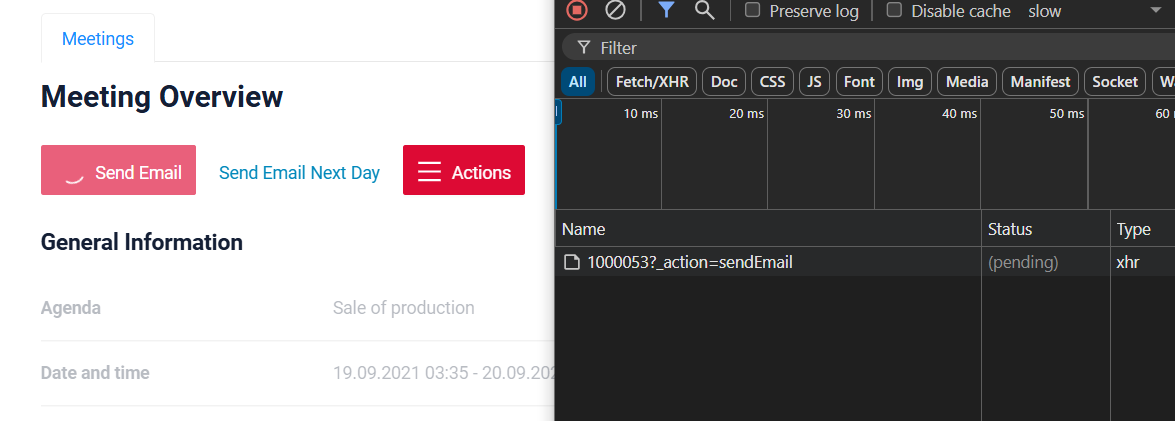

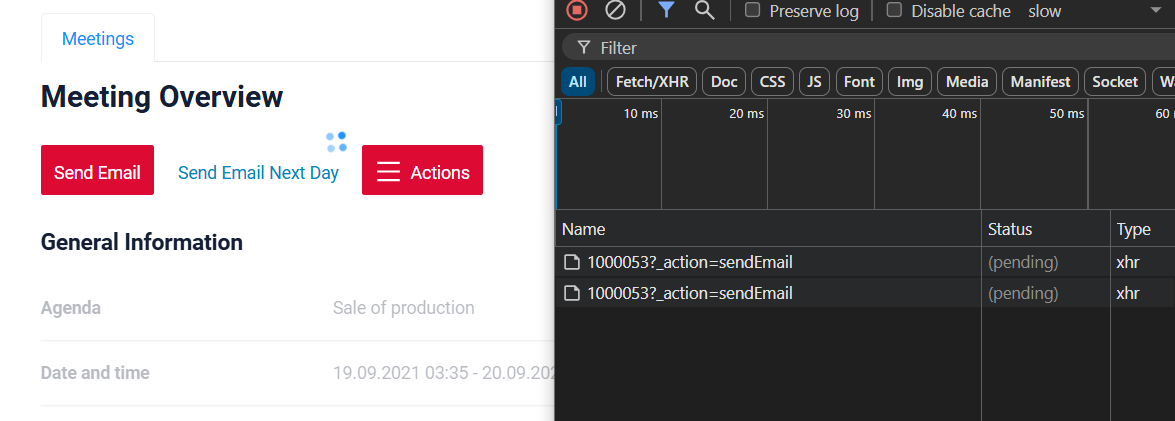

Added: action buttons – improved logic for repeated actions

We’ve added a new logic to prevent accidental repeated execution of the same action. If a button is clicked while its action is already in progress, it becomes temporarily inactive and shows a spinner. Other actions remain available as usual.

Repeated clicks are ignored while the action is running — the action is only called once noDoubleAction.png

On double-click, the same action (while still in progress) could be triggered twice withDoubleAction.png

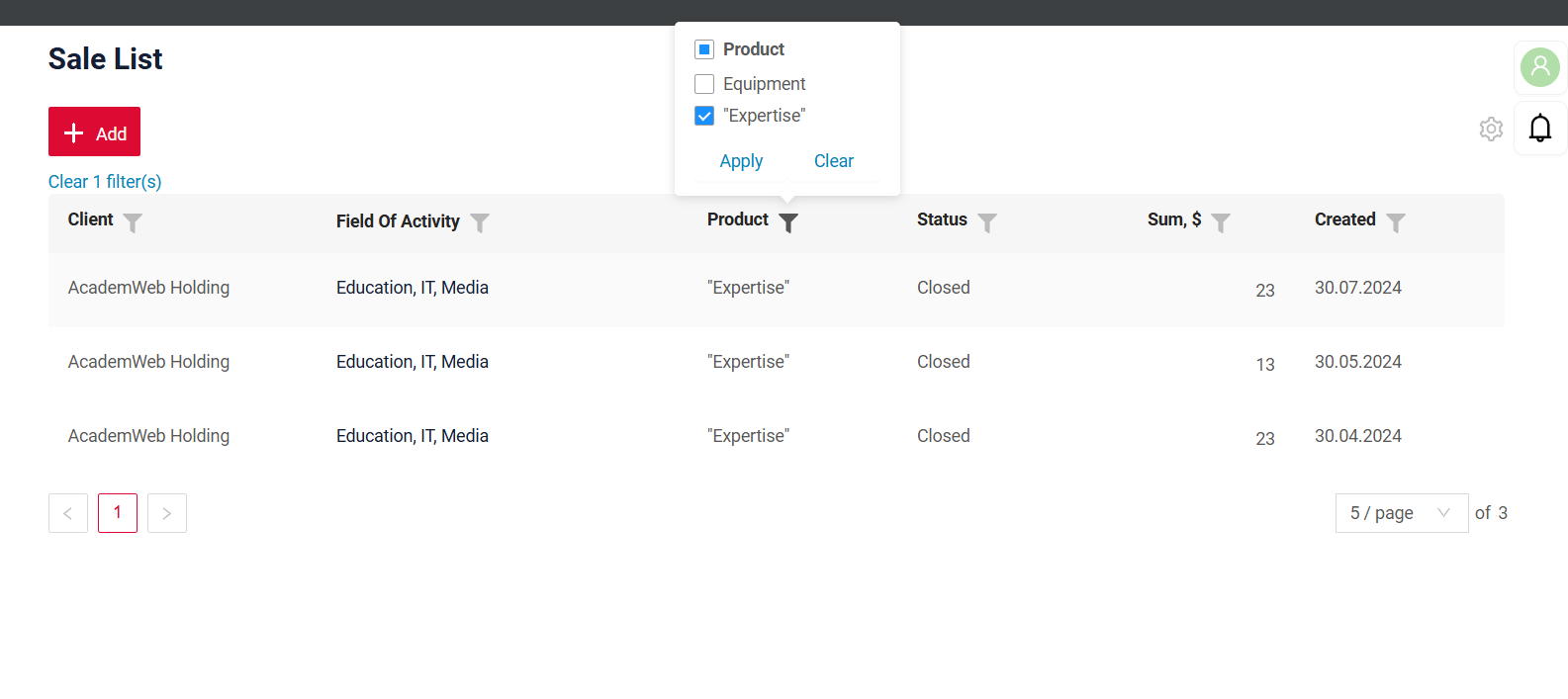

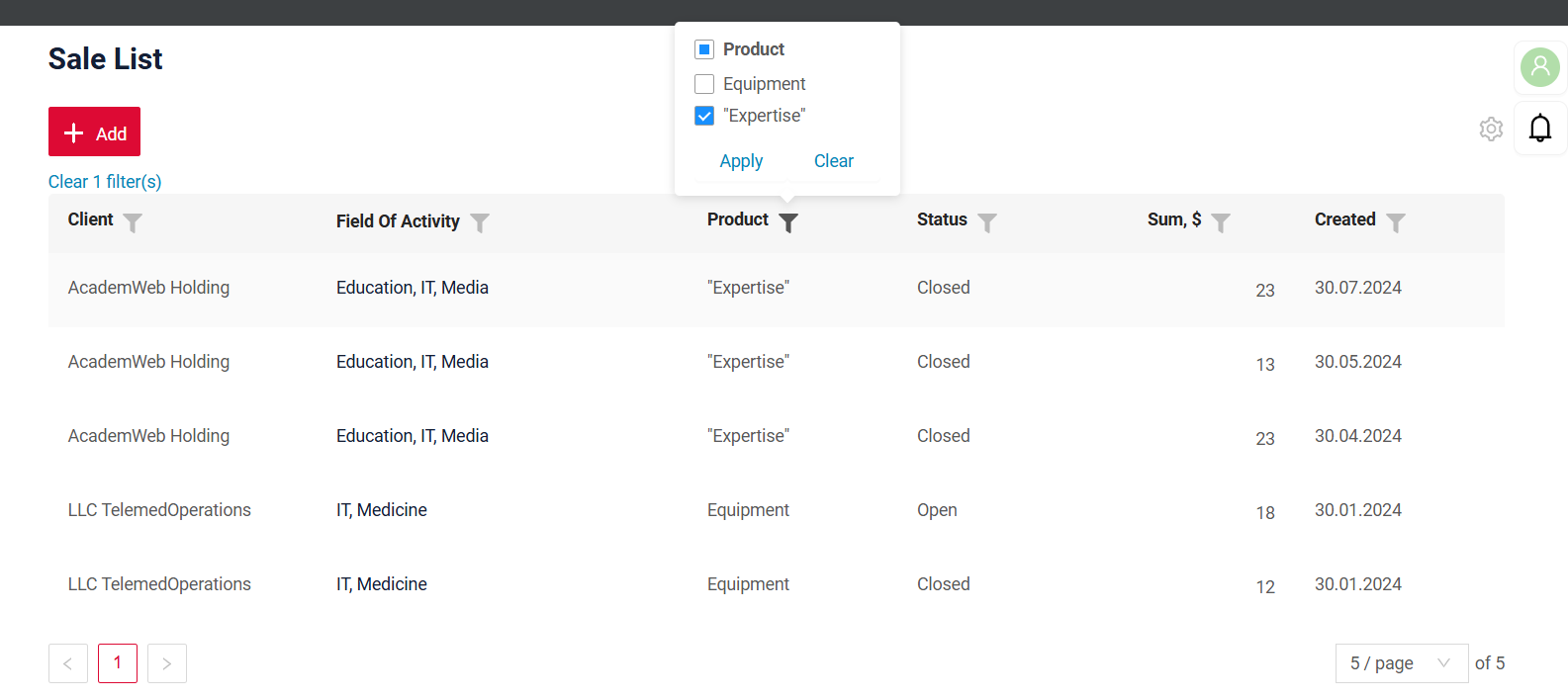

Fixed: Dictionary field – support for filtering with special characters

Filtering by dictionary values that include special characters (e.g. "" ) is now fully supported. Results are displayed correctly in all cases.

Filtering by values with special characters applies correctly. specialCharAfter.png

Filtering by values with special characters did not apply. specialCharBefore.png

Other Changes

See cxbox-ui 2.6.0 changelog.

CXBOX 4.0.0-M18 (Core)

We have released a new 4.0.0-M18 CORE version.

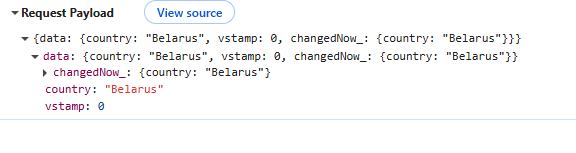

Added: tag changedNow_ the fields modified in the current user interaction

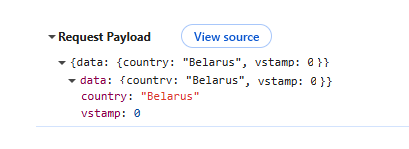

Before

Previously, the frontend included all previously changed fields in the data tag, rather than only those modified in the current user action. This made it difficult to determine which fields were just now changed by the user.

After

A new tag, changedNow_, has been introduced. It contains only the fields modified in the current user interaction that have not yet been sent to the backend.

New Methods for Tracking Field Changes on the Client (changedNow_)

We recommend using this method only for updating values and placing it at the beginning of the buildRowDependentMeta method.

To support tracking of field changes on the UI, the following method has been introduced:

public <V> boolean isFieldChangedNow(RowDependentFieldsMeta<T> fields, DtoField<? super T, V> field)

Description: Checks if a specific field was modified during the current UI interaction, based on the contents of the changedNow_ tag.

Example Usage:

buildRowDependentMeta

if (fields.isFieldChangedNow(fields, MyExampleDTO_.country)) {
    if (fields.getCurrentValue(MyExampleDTO_.country).isEmpty()) {
    fields.setCurrentValue(MyExampleDTO_.region, null);
            fields.setCurrentValue(MyExampleDTO_.street, null);
        } else if (Objects.equals(fields.getCurrentValue(MyExampleDTO_.country).orElse(null), CountryEnum.BELARUS)) {
    fields.setCurrentValue(MyExampleDTO_.region, RegionEnum.MINSK);
            fields.setCurrentValue(MyExampleDTO_.street, "Avenue Nezavisimosti");
        } else if (Objects.equals(fields.getCurrentValue(MyExampleDTO_.country).orElse(null), CountryEnum.RUSSIA)) {
    fields.setCurrentValue(MyExampleDTO_.region, RegionEnum.MOSCOWSKAYA);
            fields.setCurrentValue(MyExampleDTO_.street, "Tverskaya street");
        }
}

Added: Drilldowns with field-based filter – builder

A new method setDrilldownWithFilter has been implemented, enabling drill-down functionality with filtering capabilities for a specific field. You can use it with all field types by adding it directly to the builder. This makes drill-down link generation much simpler and more intuitive.

public final void setDrilldownWithFilter(DtoField<? super T, ?> field,
                                         DrillDownTypeSpecifier drillDownType, String drillDown,
                                         Consumer<FC> fc)

Example Usage:

buildRowDependentMeta

fields.setDrilldownWithFilter(
        MyExampleWithDrilldownDTO_.customFieldHint, DrillDownType.INNER, "/screen/MyExample/view/MyExamplelist/",fc->
        fc.add(
        CxboxMyExampleController.myexample,
        MyExampleWithDrilldownDTO.class,
            fb -> {
            fb.input(MyExampleWithDrilldownDTO_.region,
                     fields.getCurrentValue(MyExampleWithDrilldownDTO_.region).orElse(null));
            fb.multiValue(MyExampleWithDrilldownDTO_.street,
                          fields.getCurrentValue(MyExample4300WithDrilldownDTO_.street).orElse(null));
            }
        )
);

Added: Core support for officially introduced in previous releases widget and field types (moved from project)

Delete the classes from the project, or, if you want to keep the logic description of the new widgets at the project level, you need to add the new widget type to the project files FilePreview widget.

  • moved "multipleSelect" support from project to core.
  • moved "suggestionPickList" support from project to core.
  • moved prev releases officially introduced widget types from to core.
  • merged InfoFieldExtractor.java and SimpleFormFieldExtractor.java to new single default SimpleFieldExtractor.java

Other Changes

See cxbox 4.0.0-M18 changelog.

CXBOX plugin

Added: IntelliJ 2025.1+ support

Installing the Platform Tools Plugin

The plugin now has separate builds for different versions of JetBrains IDEs. Make sure the correct update repository is configured.

1)Open the Plugin Manager

  • In your JetBrains IDE, go to Help → Find Action
  • Type Plugins and open the corresponding option

2) Add the Plugin Repository

  • In the Plugins window, click the ⚙️ (gear icon) → Manage Plugin Repositories...
  • Click ➕

  • Enter the following URL:

    https://document.cxbox.org/plugin/updatePlugins.xml

  • Click OK

3) Install the Plugin

  • Switch to the Marketplace tab
  • Search for Platform Tools
  • Click Install
  • After installation, click OK

4) Restart the IDE

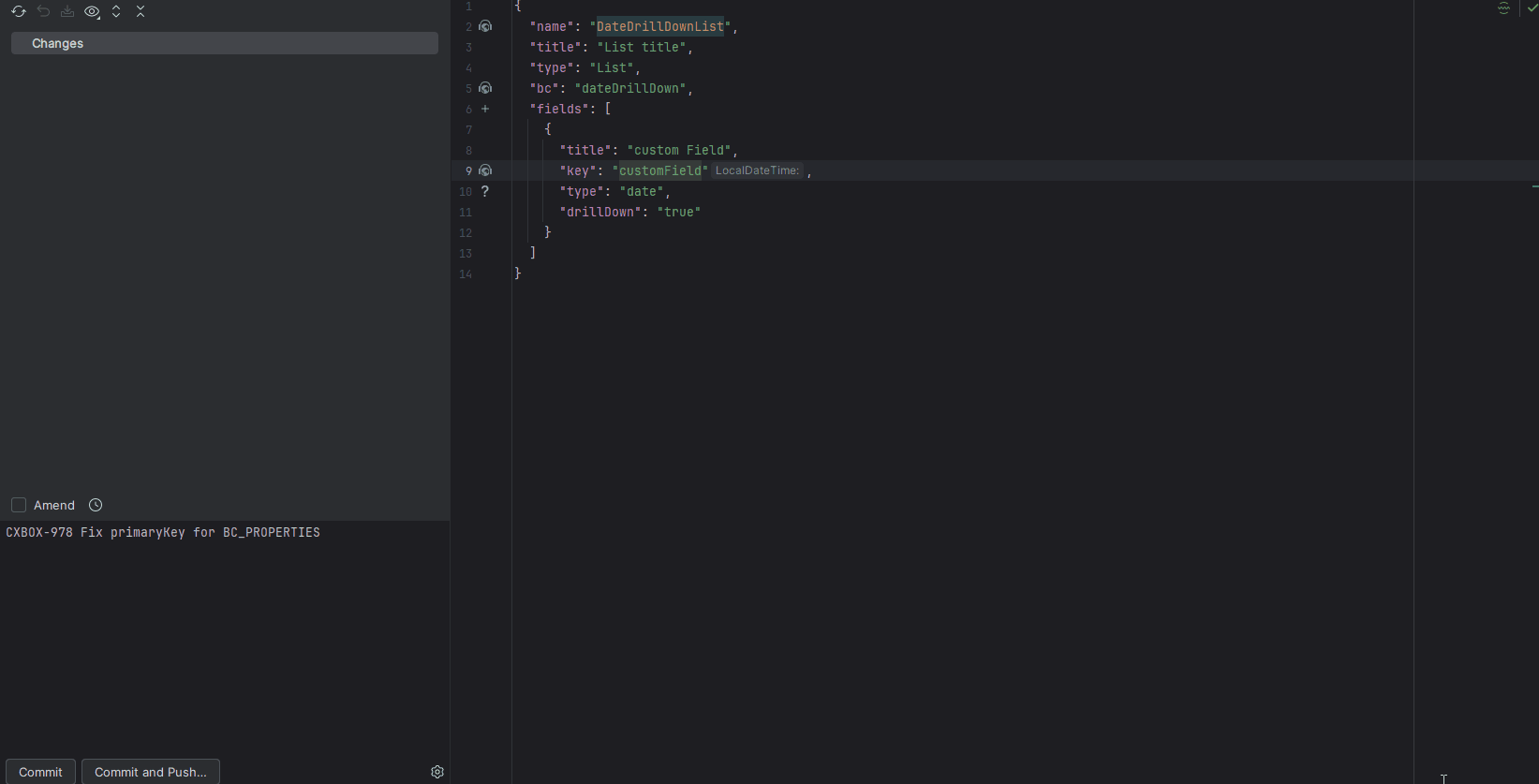

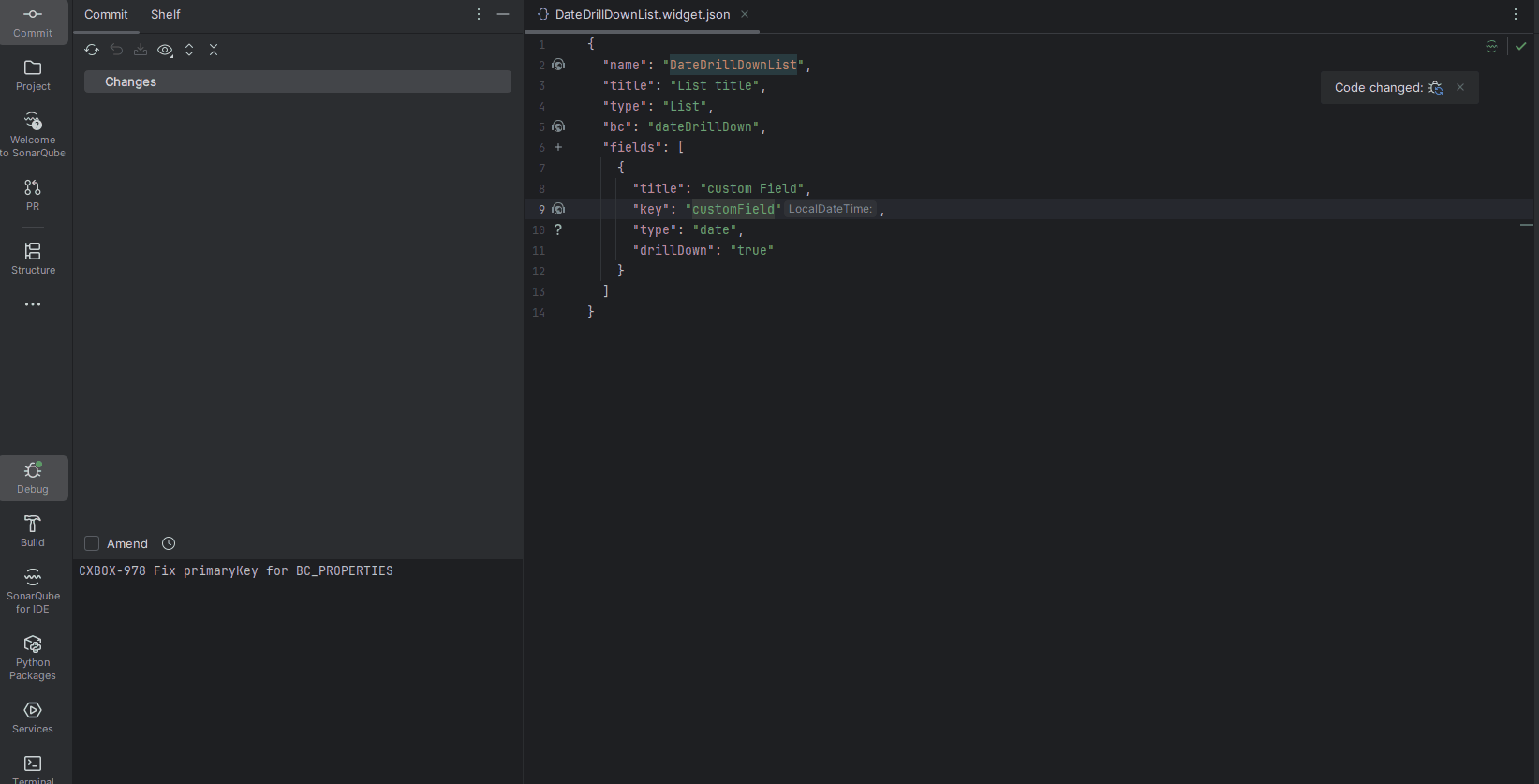

Added: Code generation support added for fields with type Time in .widget.json.

Works with core 4.0.0-M17 and the versions above.

Code Generation

Added support for code generation of fields with the time type. You can now:

  • Generate a time field with the default format hh:mm:ss;
  • Specify a custom time format by selecting the desired pattern from the list of supported formats.



Autocomplete

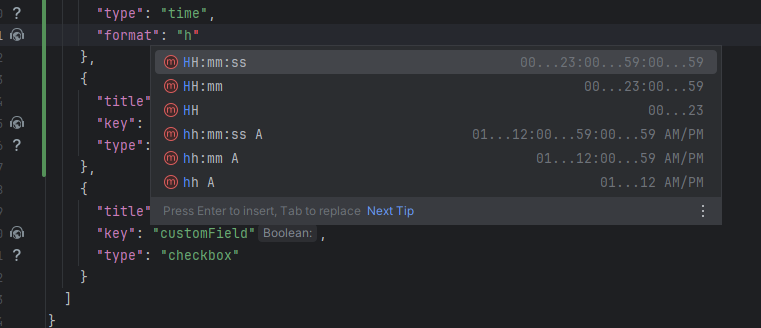

Autocomplete is now available for time fields. When entering a format, you'll see a list of officially supported patterns, making it easier and faster to configure the desired time format.

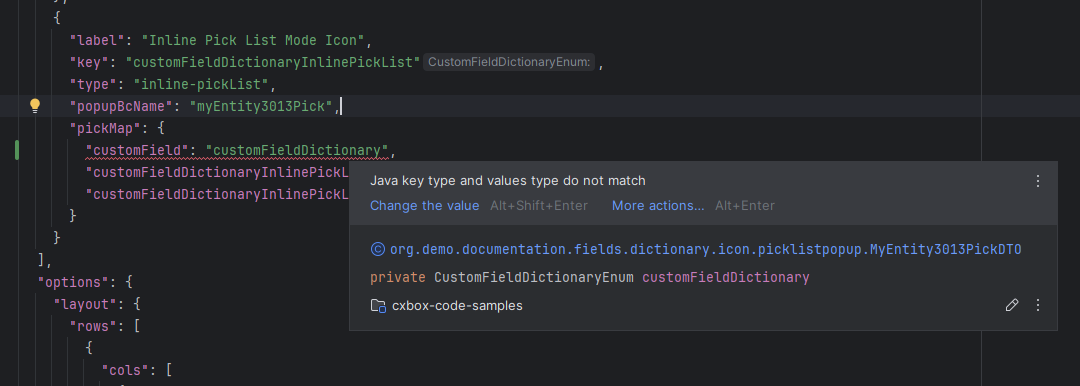

Added: type checking for fields containing pickMap

For fields containing pickMap, type checking was added to ensure Java type consistency of pickMap parameters (excluding the id field).

Validation is implemented for the following field types:

  • inline-pickList
  • pickList
  • suggestionPickList

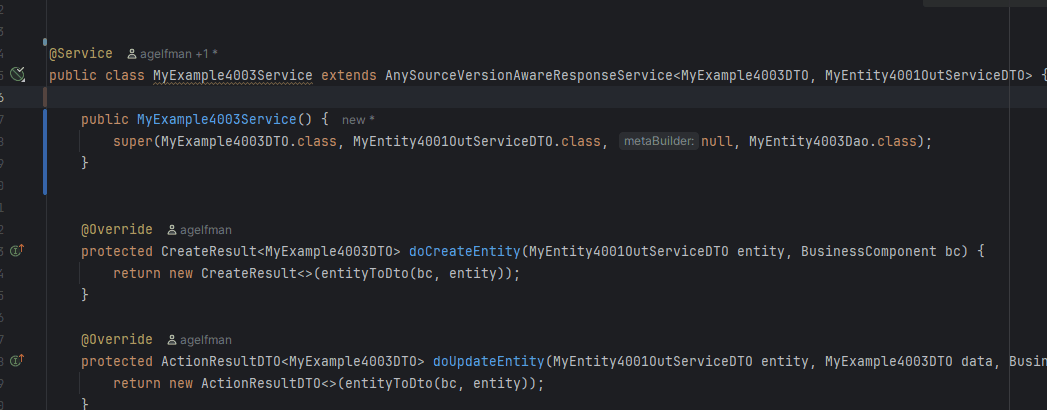

Added: inspection and quick-fix support for the new API

As part of the core 4.0.0-M15 release, used Lombok’s @RequiredArgsConstructor and @Getter (meta,dao) for AnySourceVersionAwareResponseService and @Getter (meta) VersionAwareResponseService instead of explicitly writing a constructor. Added a quick-fix for the plugin to ensure compatibility with the new API and simplify the migration to the updated service implementation.

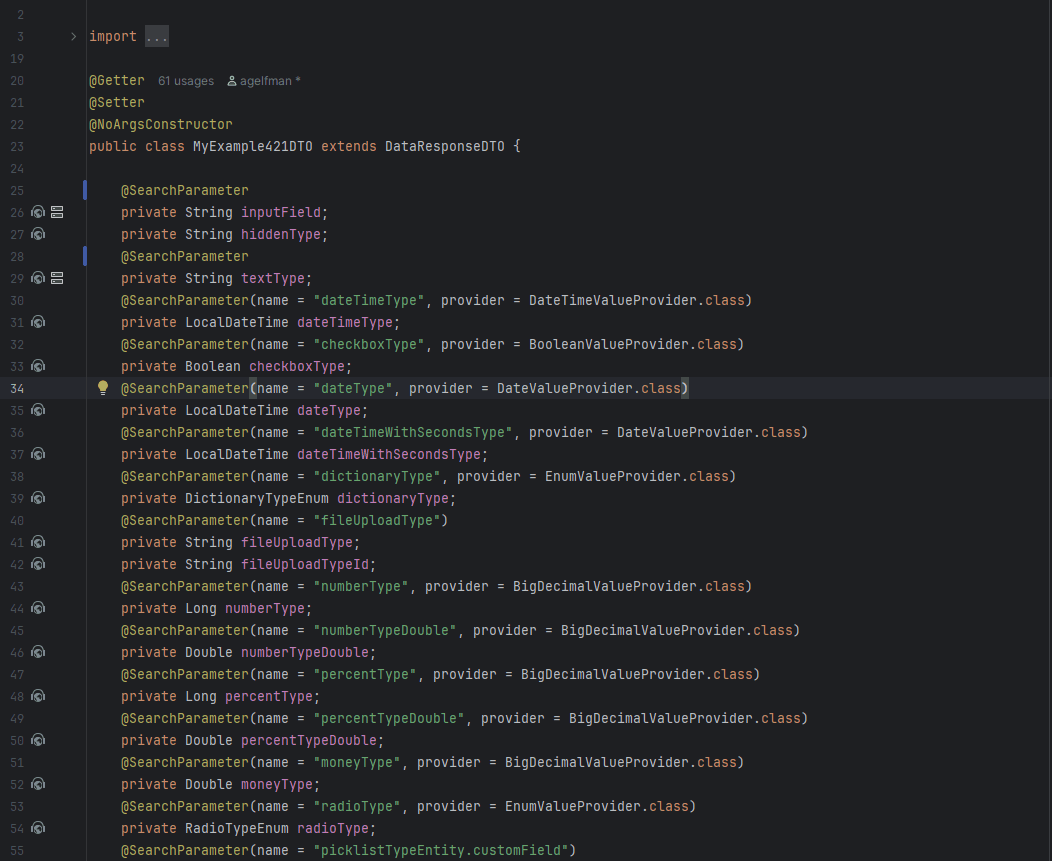

Added: @SearchParameter: if no explicit parameter is defined

Now, if no parameter is specified for @SearchParameter, through to the entity with the corresponding field name.

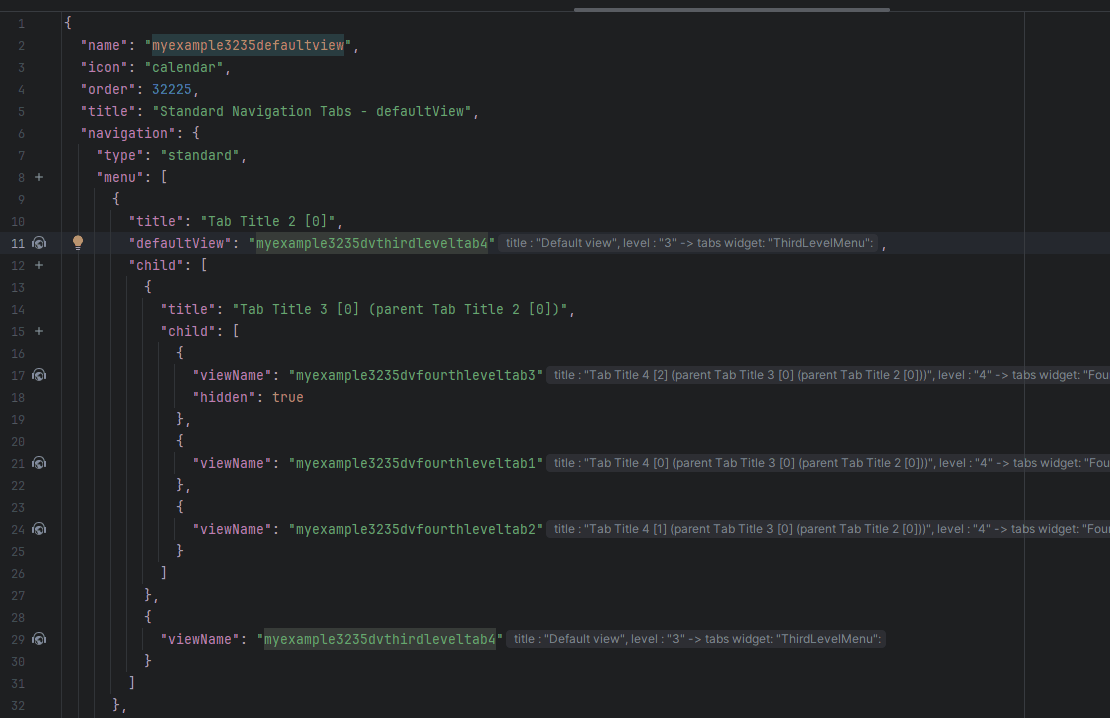

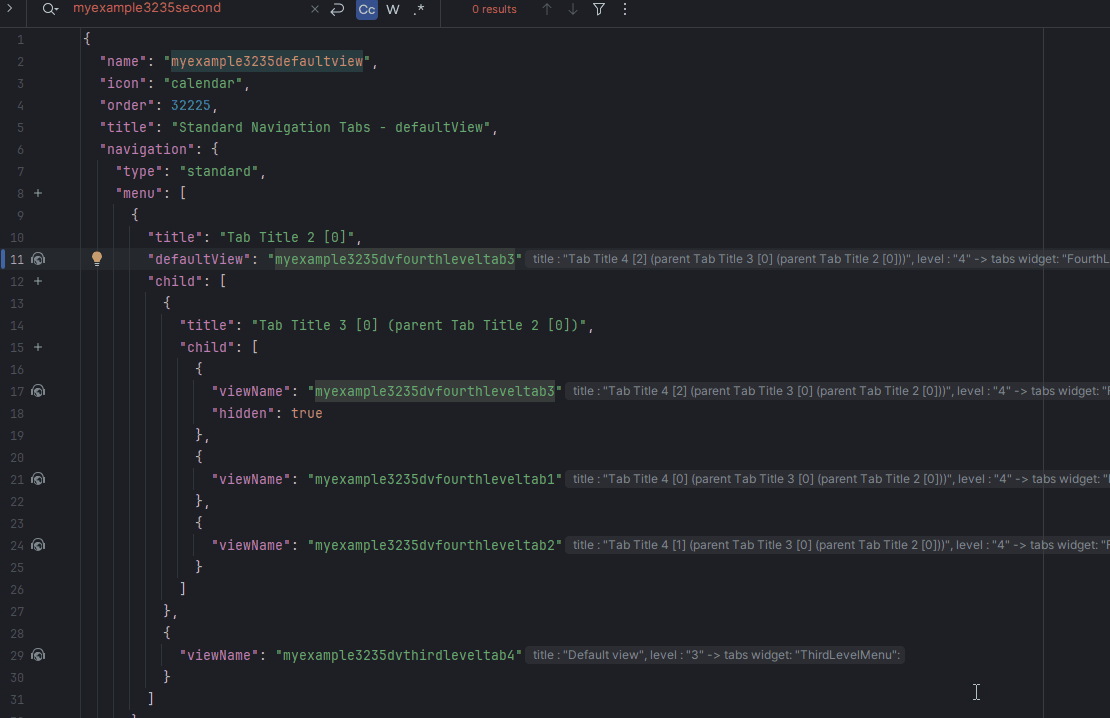

Added: Autocomplete, Ctrl-click navigation and inspection for defaultView

Autocomplete, Ctrl-click navigation and inspectio support added for the defaultView property in .screen.json

Autocomplete:


Ctrl-click navigation


Inspection

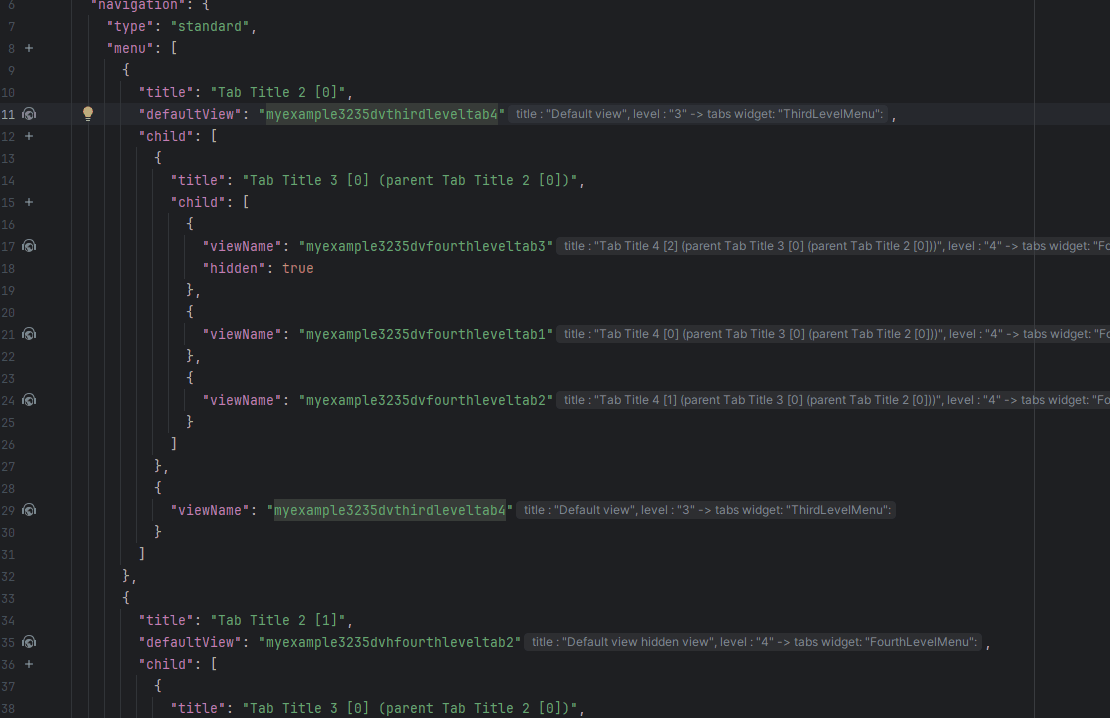

Refactoring

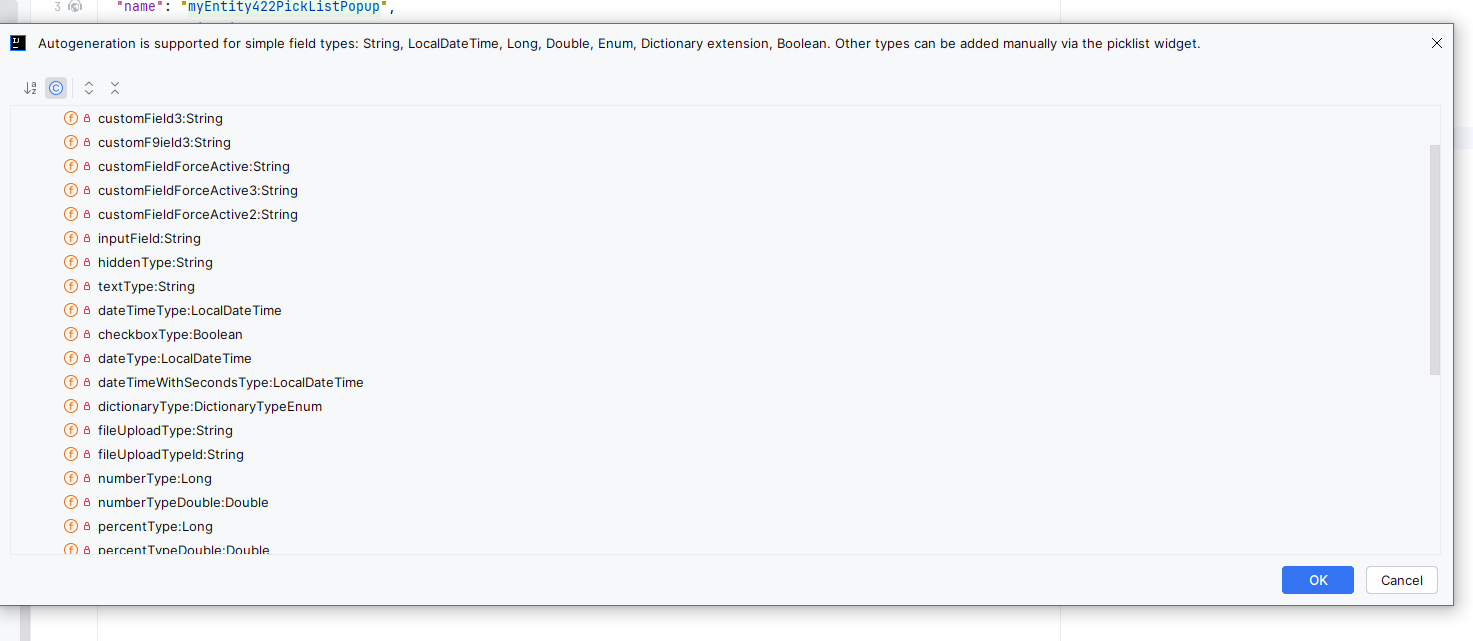

Fixed: code generation for fields with type Picklist and inline-pickList

For fields with type Picklist and inline-pickList in .widget.json code generation fixed:

  • Field filtering added to the popup for selecting fields when creating a picklist. Now only fields of the following types are displayed:

    • String
    • LocalDateTime
    • Long
    • Double
    • Enum
    • Dictionary extension
    • Boolean

  • Autogeneration of picklist configuration is now supported only for the above simple field types. Other field types can be added manually via the picklist widget.

Autogeneration message: Autogeneration is supported for simple field types: String, LocalDateTime, Long, Double, Enum, Dictionary extension, Boolean. Other types can be added manually via the picklist widget.


CXBOX documentation

Added: Pagination - hideLimitOptions updated

We have updated the Pagination article, hideLimitOptions section.
