Dictionary

Dictionary is a component that allows to select single value from dropdown.

Tips

Use for dictionaries or slowly-growing entities, e.g. no more than 1000 values (all values are loaded in memory). Otherwise, use inlinePickList

Basics

Live Sample · GitHub

Dictionary can configurable:

Dictionary enables adding, deleting, and modifying its values through the administrative interface, so it should remain independent of business logic.

If the dictionary is tied to business logic, it is recommended to use Enum to prevent modifications or deletions via the administration panel.

How does it look?




How to add?

Example

Step 1 Download plugin download Intellij Plugin

Step 2 Add dictionary field to an existing form widget addfield.gif

Add field to .widget.json.

  • Step1 Create Enum. Best practice: storing enum name in the Database and using a separate field for displayed UI values
    @Getter
@AllArgsConstructor
public enum CustomFieldEnum {
    BELGOROD("Belgorod region"),
    BRYANSK("Bryansk region"),
    VLADIMIR("Vladimir region"),
    VORONEZH("Voronezh region"),
    IVANOVO("Ivanovo region"),
    KALUGA("Kaluga region"),
    KOSTROMA("Kostroma region"),
    KURSK("Kursk region"),
    MOSCOW("Moscow region"),
    ORYOL("Oryol region"),
    RYAZAN("Ryazan region"),
    SMOLENSK("Smolensk region"),
    TAMBOV("Tambov region"),
    TVER("Tver region");

    @JsonValue
    private final String value;

    public static CustomFieldEnum getByValue(@NonNull String value) {
        return Arrays.stream(CustomFieldEnum.values())
                .filter(enm -> Objects.equals(enm.getValue(), value))
                .findFirst()
                .orElse(null);
    }
}
  • Step2 Add Enum field to corresponding BaseEntity.
    @Entity
    @Getter
    @Setter
    @NoArgsConstructor
    public class MyEntity extends BaseEntity {

        @Enumerated(value = EnumType.STRING)
        @Column
        private CustomFieldEnum customField;

    }
  • Step3 Add Enum field to corresponding DataResponseDTO.
    @Getter
    @Setter
    @NoArgsConstructor
    public class MyExampleDTO extends DataResponseDTO {

        @SearchParameter(name = "customField", provider = EnumValueProvider.class)
        private CustomFieldEnum customField;

        public MyExampleDTO(MyEntity entity) {
            this.id = entity.getId().toString();
            this.customField = entity.getCustomField();
        }

    }

  • Step4 Use fields.setEnumValues in the appropriate FieldMetaBuilder to ensure the frontend reseives the list of values in the /row-meta method under "values" tag.

    If the values list is dependent on a parent field, use fields.setEnumValues within the buildRowDependentMeta method to dynamically set it based on the parent.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
        fields.setEnumValues(MyExampleDTO_.customField, CustomFieldEnum.values());
    }
  • Step5 Add to .widget.json.
{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "dictionary"
    }
  ]
}

Live Sample · GitHub

  • Step5 Add to .widget.json.
{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "dictionary"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

  • Step5 Add to .widget.json.
{
  "name": "MyExampleForm",
  "title": "Form title",
  "type": "Form",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "dictionary"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

(since release 2.0.9)

Step 1. Configurable dictionary. Add description and value dictionary to DICTIONARY.csv.

TYPE;KEY;VALUE;DISPLAY_ORDER;DESCRIPTION;ACTIVE;ID
REGIONS;MOSCOW;Moscow;;;;
REGIONS;SAINT PETERBURG;St. Petersburg;;;;
REGIONS;KOSTROMA;Kostroma;1;;;
REGIONS;SYKTYVKAR;Syktyvkar;2;;;
REGIONS;NewYork;New York;3;;;

Step 2. Create record = name type dictionary implements Dictionary (If a dictionary type includes underscores, its name is transformed into CamelCase by removing the underscores and capitalizing the first letter of each word.)

public record Regions(String key) implements Dictionary {

    public static final Regions SAINT_PETERBURG = new Regions("SAINT_PETERBURG");

    public static final Regions MOSCOW = new Regions("MOSCOW");

}

Step 3. Add field with new record to corresponding BaseEntity.

@Entity
@Getter
@Setter
@NoArgsConstructor
public class MyEntity extends BaseEntity {
    @Column
    private String customField;

    @Column
    private Regions customFieldDictionary;
}

Step 4. Add field with new record to corresponding DataResponseDTO.

Info

if you microservice uses hibernate, then add dependency, that will allow you to use org. cxbox. dictionary. hibernate. DictionaryType under entity column, e. g. @Type(DictionaryType. class):

<dependency>
    <groupId>org. cxbox</ groupId>
    <artifactId>cxbox-dictionary-hibernate</ artifactId>
</ dependency>

Also, you can turn on auto type registration setting org. cxbox. dictionary. enable_types_contributor=true in hibernate properties, e. g. in spring:

<dependency>
    <groupId>org. cxbox</ groupId>
    <artifactId>cxbox-dictionary-api</ artifactId>
</ dependency>


spring:
jpa:
    properties:
        org:
            cxbox:
                dictionary:
                    enable_types_contributor: true

then @Type(DictionaryType. class) can be optionally skipped under column, because system will register type for all Dictionary implementations. enable_types_contributor feature is experimental - please, use @Type(DictionaryType. class) under entity column as fallback varian

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField")
    private String customField;

    @SearchParameter(name = "customFieldDictionary", provider = DictionaryValueProvider.class)
    private Regions customFieldDictionary;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldDictionary = entity.getCustomFieldDictionary();
    }
}

Step 5. Use fields.setDictionaryValues in the appropriate FieldMetaBuilder to ensure the frontend reseives the list of values in the /row-meta method under "values" tag.

If the values list is dependent on a parent field, use fields.setEnumValues within the buildRowDependentMeta method to dynamically set it based on the parent.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setEnabled(MyExampleDTO_.customFieldDictionary);
        fields.setDictionaryValues(MyExampleDTO_.customFieldDictionary);
    }

Step 6. Add fields.setDictionaryFilterValues to corresponding FieldMetaBuilder.

The front-end requires us to display all directory data within the method /row-meta tag values. If the values list is dependent on the parent, we should use the buildIndependentMeta method for this purpose.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionary);
    }

Step 7. Add to .widget.json.

{
  "name": "MyExampleList",
  "title": "List configurable dictionary basic",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "Custom Field Lov",
      "key": "customFieldDictionary",
      "type": "dictionary"
    },
    {
      "title": "customField",
      "key": "customField",
      "type": "input"
    }
  ]
}

Live Sample · GitHub

Step 7. Add to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info configurable dictionary basic",
  "type": "Info",
  "bc": "myexample",
  "fields": [
    {
      "label": "Custom Field Lov",
      "key": "customFieldDictionary",
      "type": "dictionary"
    },
    {
      "label": "customField",
      "key": "customField",
      "type": "input"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customFieldDictionary",
              "span": 12
            }
          ]
        },
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

Step 7. Add to .widget.json.

{
  "name": "MyExampleForm",
  "title": "Form configurable dictionary basic",
  "type": "Form",
  "bc": "myexample",
  "fields": [
    {
      "label": "Custom Field Lov",
      "key": "customFieldDictionary",
      "type": "dictionary"
    },
    {
      "label": "customField",
      "key": "customField",
      "type": "input"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customFieldDictionary",
              "span": 12
            }
          ]
        },
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

Step 8. Add bean DictionaryProvider. Incorporate it into the application a single time.

import java.util.Collection;
import lombok.NonNull;
import org.cxbox.api.data.dictionary.DictionaryCache;
import org.cxbox.api.data.dictionary.SimpleDictionary;
import org.cxbox.dictionary.Dictionary;
import org.cxbox.dictionary.DictionaryProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class DictionaryConfig {

    @Bean
    public DictionaryProvider dictionaryProvider() {
        return new DictionaryProvider() {

            @Override
            public <T extends Dictionary> T lookupName(@NonNull Class<T> type, @NonNull DictionaryValue value) {
                var dictTmp = Dictionary.of(type, "");
                var lov = DictionaryCache.dictionary().lookupName(value.getValue(), dictTmp.getDictionaryType());
                return Dictionary.of(type, lov.getKey());
            }

            @Override
            public <T extends Dictionary> SimpleDictionary lookupValue(@NonNull T dictionary) {
                return DictionaryCache.dictionary().get(dictionary.getDictionaryType(), dictionary.key());
            }

            @Override
            public <T extends Dictionary> Collection<T> getAll(@NonNull Class<T> dictionaryType) {
                return DictionaryCache.dictionary().getAll(Dictionary.of(dictionaryType, "").getDictionaryType())
                        .stream()
                        .map(e -> Dictionary.of(dictionaryType, e.getKey()))
                        .toList();
            }
        };
    }

}

  • Step 1. LOV Create LOV

    • Step 1.1 Add type LOV to CXBOX-DICTIONARY_TYPE.csv.

      ID;TYPE;TYPE_DESC
200;REGIONS;Regions

    • Step 1.2 Add description and value LOV to CXBOX-DICTIONARY_ITEM.csv.

      "300";200;"REGIONS";"MOSCOW";"Moscow";true;0;null
"301";200;"REGIONS";"SAINT PETERBURG";"St. Petersburg";true;1;null
"302";200;"REGIONS";"KOSTROMA";"Kostroma";true;2;null
"303";200;"REGIONS";"SYKTYVKAR";"Syktyvkar";true;3;null

    • Step 1.3 Add corresponding launguage to database change management DICTIONARY_ITEM_TR.

      <changeSet id="ADD LANGUAGE DICTIONARY_ITEM_TR" author="initial">
  <sql>
    insert into DICTIONARY_ITEM_TR (ID, LANGUAGE, VALUE)
    select ID, 'en' as LANGUAGE, VALUE as VALUE
    from DICTIONARY_ITEM;
  </sql>
  <sql>
    insert into DICTIONARY_ITEM_TR (ID, LANGUAGE, VALUE)
    select ID, 'ru' as LANGUAGE, VALUE as VALUE
    from DICTIONARY_ITEM;
  </sql>
</changeSet>

    • Step 1.4 Add in project AdministeredDictionary

    • Step 1.5 Add in project AdministeredDictionaryType

      @Getter
@RequiredArgsConstructor
public enum AdministeredDictionaryType implements Serializable, IDictionaryType {

    @Override
    public LOV lookupName(String val) {
        return dictionary().lookupName(val, this);
    }

    @Override
    public String lookupValue(LOV lov) {
        return dictionary().lookupValue(lov, this);
    }

    @Override
    public String getName() {
        return name();
    }

    public boolean containsKey(String key) {
        return dictionary().containsKey(key, this);
    }

}

    • Step 1.6 Add LOV (REGIONS) in AdministeredDictionaryType

      @Getter
@RequiredArgsConstructor
public enum AdministeredDictionaryType implements Serializable, IDictionaryType {

    REGIONS;

    @Override
    public LOV lookupName(String val) {
        return dictionary().lookupName(val, this);
    }

    @Override
    public String lookupValue(LOV lov) {
        return dictionary().lookupValue(lov, this);
    }

    @Override
    public String getName() {
        return name();
    }

    public boolean containsKey(String key) {
        return dictionary().containsKey(key, this);
    }

}

  • Step2 Add LOV field to corresponding BaseEntity.

@Entity
@Getter
@Setter
@NoArgsConstructor
public class MyEntity extends BaseEntity {

    @Column
    private LOV customField;

}
  • Step3Add String field to corresponding DataResponseDTO.
@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(provider = LovValueProvider.class)
    @AdministeredDictionaryOld(REGIONS)
    private String customField;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = REGIONS.lookupValue(entity.getCustomField());
    }

}
  • Step4 Add fields.setDictionaryTypeWithAllValues to corresponding FieldMetaBuilder.

The front-end requires us to display all directory data within the method /row-meta tag values. If the values list is dependent on the parent, we should use the buildRowDependentMeta method for this purpose.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
    }
  • Step5 Add to .widget.json.
    {
      "name": "MyExampleInfo",
      "title": "Info title",
      "type": "Info",
      "bc": "myExampleBc",
      "fields": [
        {
          "label": "Custom Field",
          "key": "customField",
          "type": "dictionary"
        }
      ],
      "options": {
        "layout": {
          "rows": [
            {
              "cols": [
                {
                  "fieldKey": "customField",
                  "span": 12
                }
              ]
            }
          ]
        }
      }
    }

Live Sample · GitHub

  • Step5 Add to .widget.json.

Live Sample · GitHub

  • Step5 Add to .widget.json.

Live Sample · GitHub

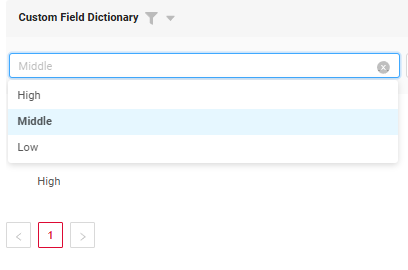

How to sort values in a drop-down list or for filtering?

see Sorting

Placeholder

Live Sample · GitHub

Placeholder allows you to provide a concise hint, guiding users on the expected value. This hint is displayed before any user input. It can be calculated based on business logic of application

How does it look?


not applicable


How to add?

Example

Add fields.setPlaceholder to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setPlaceholder(MyExampleDTO_.customField, "Placeholder text");
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Color

Color allows you to specify a field color. It can be calculated based on business logic of application

Calculated color

Live Sample · GitHub

Constant color

Live Sample · GitHub

How does it look?



not applicable

How to add?

Example

Step 1 Add custom field for color to corresponding DataResponseDTO. The field can contain a HEX color or be null.

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = EnumValueProvider.class)
    private CustomFieldEnum customField;

    private String customFieldColor;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldColor = "#edaa";
    }

}

Step 2 Add "bgColorKey" : custom field for color to .widget.json.

{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "bgColorKey": "customFieldColor"
    }
  ]
}

Live Sample · GitHub

Step 2 Add "bgColorKey" : custom field for color to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "bgColorKey": "customFieldColor"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

not applicable

Add "bgColor" : HEX color to .widget.json.

{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "bgColor": "#edaa"
    }
  ]
}

Live Sample · GitHub

Add "bgColor" : HEX color to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "bgColor": "#edaa"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

not applicable

Readonly/Editable

Readonly/Editable indicates whether the field can be edited or not. It can be calculated based on business logic of application

Editable Live Sample · GitHub

Readonly Live Sample · GitHub

How does it look?


not applicable





How to add?

Example

Step1 Add mapping DTO->entity to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
                                                             BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Step2 Add fields.setEnabled to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Option 1 Enabled by default.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {

    }

Option 2 Not recommended. Property fields.setDisabled() overrides the enabled field if you use after property fields.setEnabled.

Works for List.

Live Sample · GitHub

Works for Info.

Live Sample · GitHub

Works for Form.

Live Sample · GitHub

Filtering

Enum Live Sample · GitHub

Dictionary Live Sample · GitHub

Filtering allows you to search data based on criteria. Search uses in operator.

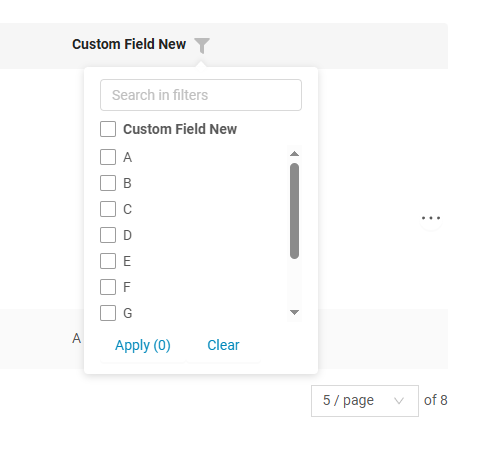

The filter component displays a text search field and scrollbar based on the number of available filter values. (since release 2.0.13)

  • The search input and scrollbar appear only when the number of filterable values exceeds
    7 items (Default count items - configurable via frontend constant).

  • The Apply button shows a counter of selected items (e.g., Apply (5)).

  • If the selection count exceeds 7 items, it displays Apply (N+) (e.g., Apply (9+)).

How does it look?



not applicable

not applicable

How to add?

Example

Step 1 Add @SearchParameter to corresponding DataResponseDTO. (Advanced customization SearchParameter)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = EnumValueProvider.class)
    private CustomFieldEnum customField;

    @SearchParameter(name = "customFieldNew", provider = EnumValueProvider.class)
    private CustomFieldNewEnum customFieldNew;

    @SearchParameter(name = "customFieldSecond", provider = EnumValueProvider.class)
    private CustomFieldSecondEnum customFieldSecond;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldNew = entity.getCustomFieldNew();
        this.customFieldSecond = entity.getCustomFieldSecond();
    }

}

Step 2 Add fields.enableFilter to corresponding FieldMetaBuilder.

Add fields.setEnumFilterValues to corresponding FieldMetaBuilder.

The front-end requires us to display all directory data within the method /row-meta tag filterValues.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldSecond, LOW, HIGH, MIDDLE);
        fields.enableFilter(MyExampleDTO_.customFieldSecond);
        if (Boolean.TRUE.equals(configuration.getForceActiveEnabled())) {
            fields.setForceActive(MyExampleDTO_.customField);
        }

        fields.setEnumFilterValues(fields, MyExampleDTO_.customField, CustomFieldEnum.values());
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldNew, CustomFieldNewEnum.values());
        fields.enableFilter(MyExampleDTO_.customFieldNew);
    }

How to sort values in a drop-down list or for filtering?

see Sorting

Live Sample · GitHub

not applicable

not applicable

Step 1 Add @SearchParameter to corresponding DataResponseDTO. (Advanced customization SearchParameter)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField")
    private String customField;
    @SearchParameter(name = "customFieldDictionarySecond", provider = DictionaryValueProvider.class)
    private CustomDictionaryFiltrationSecond customFieldDictionarySecond;
    @SearchParameter(name = "customFieldDictionary", provider = DictionaryValueProvider.class)
    private CustomDictionaryFiltration customFieldDictionary;
    @SearchParameter(name = "customFieldNewDictionary", provider = DictionaryValueProvider.class)
    private CustomDictionaryNewFiltration customFieldNewDictionary;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldDictionary = entity.getCustomFieldDictionary();
        this.customFieldNewDictionary = entity.getCustomFieldNewDictionary();
        this.customFieldDictionarySecond = entity.getCustomFieldDictionarySecond();
    }
}

Step 2 Add fields.enableFilter to corresponding FieldMetaBuilder.

Add fields.setDictionaryFilterValues to corresponding FieldMetaBuilder.

The front-end requires us to display all directory data within the method /row-meta tag filterValues.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.enableFilter(MyExampleDTO_.customFieldDictionarySecond);
        Collection<CustomDictionaryFiltrationSecond> variantFiltration = List.of(
                CustomDictionaryFiltrationSecond.LOW,
                CustomDictionaryFiltrationSecond.HIGH,
                CustomDictionaryFiltrationSecond.MIDDLE
        );

        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionarySecond, variantFiltration);

        fields.enableFilter(MyExampleDTO_.customFieldNewDictionary);
        fields.setDictionaryValues(MyExampleDTO_.customFieldNewDictionary);

        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionary);
        fields.enableFilter(MyExampleDTO_.customFieldDictionary);

    }

Live Sample · GitHub

not applicable

not applicable

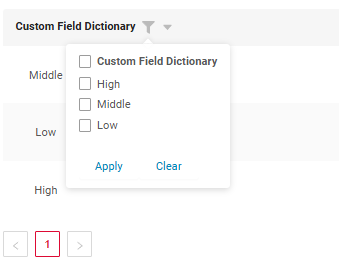

How to sort values in a drop-down list or for filtering?

see Sorting

Configuration Default count items

  • Location: \ui\src\constants\filter.ts

  • Variables:

    • checkboxFilterMaxVisibleItems – Controls when scroll/search appear.
    • checkboxFilterCounterLimit – Sets the maximum number before switching to + notation.

Drilldown

Live Sample · GitHub

DrillDown allows you to navigate to another view by simply tapping on it. Target view and other drill-down parts can be calculated based on business logic of application

Also, it optionally allows you to filter data on target view before it will be opened see more DrillDown

How does it look?

img_drilldown_list

img_drilldown_info

not applicable

How to add?

Example

Option 1

Step 1 Add fields.setDrilldown to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setDrilldown(
                MyExampleDTO_.customField,
                DrillDownType.INNER,
                "/screen/myexample/view/myexampleform/" + PlatformMyExampleController.myExampleBc + "/" + id
        );
    }

Step 2 Add "drillDown": "true" to .widget.json.

{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "drillDown": "true"
    }
  ]
}

Option 2 Add "drillDownKey" : custom field to .widget.json. See more Drilldown

Live Sample · GitHub

Step 2 Add "drillDown": "true" to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "dictionary",
      "drillDown": "true"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}
Option 2 Add "drillDownKey" : custom field to .widget.json. See more Drilldown

Live Sample · GitHub

not applicable

Advanced customization

Validation

Validation allows you to check any business rules for user-entered value. There are types of validation:

1) Exception:Displays a message to notify users about technical or business errors.

Business Exception: Live Sample · GitHub

Runtime Exception: Live Sample · GitHub

2) Confirm: Presents a dialog with an optional message, requiring user confirmation or cancellation before proceeding.

Live Sample · GitHub

3) Field level validation: shows error next to all fields, that validation failed for

Option 1: Live Sample · GitHub

Option 2: Live Sample · GitHub

How does it look?

img_business_error

img_runtime_error

confirm_form

img_javax_stat_list

not applicable

img_business_error

img_runtime_error

confirm_form

img_javax_stat_form

How to add?

Example

BusinessException describes an error within a business process.

Add BusinessException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
                                                             BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            if (data.getCustomField() != null && !CustomFieldEnum.HIGH.getValue().equals(data.getCustomField().getValue())) {
                throw new BusinessException().addPopup(ONLY_HIGH);
            }
            entity.setCustomField(data.getCustomField());
        }
        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

RuntimeException describes technical error within a business process.

Add RuntimeException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
                                                             BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
            try {
                //call custom function
                throw new Exception("Error");
            } catch (Exception e) {
                throw new RuntimeException("An unexpected error has occurred.");
            }
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Add PreAction.confirm to corresponding VersionAwareResponseService.

    @Override
    public Actions<MyExampleDTO> getActions() {
        return Actions.<MyExampleDTO>builder()
                .action(act -> act
                        .action("save", "save")
                        .withPreAction(PreAction.confirm(cf -> cf
                                .text("You want to save the value?")
                        )))
                .build();
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Add javax.validation to corresponding DataResponseDTO.

Use if:

Requires a simple fields check (javax validation) Add javax.validation to corresponding DataResponseDTO.

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = EnumValueProvider.class)
    @NotNull(message = "Custom message about error")
    private CustomFieldEnum customField;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
    }

}

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Create сustom service for business logic check.

Use if:

Business logic check required for fields

Step 1 Create сustom method for check.

    private void validateFields(BusinessComponent bc, MyExampleDTO dto) {
        BusinessError.Entity entity = new BusinessError.Entity(bc);
        if (!dto.getCustomField().getValue().equals(CustomFieldEnum.HIGH.getValue())) {
            entity.addField(MyExampleDTO_.customField.getName(), "Custom message about error");
        }
        if (!dto.getCustomFieldAdditional().getValue().equals(CustomFieldEnum.HIGH.getValue())) {
            entity.addField(MyExampleDTO_.customFieldAdditional.getName(), "Custom message about error");
        }
        if (!entity.getFields().isEmpty()) {
            throw new BusinessException().setEntity(entity);
        }
    }

Step 2 Add сustom method for check to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
                                                              BusinessComponent bc) {
        validateFields(bc, data);
        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Live Sample · GitHub

Sorting

Enum Live Sample · GitHub

Dictionary Live Sample · GitHub

Sorting allows you to sort data in ascending or descending order.

Sorting data: The sorting of values is based on those stored in the database rather than those displayed in the interface.

Info

Sorting won't function until the page is refreshed after adding or updating records.

Sorting Drop-down list or List values for filter: Can also arrange the values in the drop-down list or list values for filter in the desired order. Enum possible to arrange list values for filter different from sorting for drop-down values.

How does it look?

img_sort_list

not applicable

not applicable


not applicable

not applicable


not applicable


How to add?

Example

see more Sorting

The sorting of values is based on those stored in the database rather than those displayed in the interface, using lexicographic sorting.

Step 1 Add fields.enableSort to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.setEnumFilterValues(fields, MyExampleDTO_.customField, CustomFieldEnum.values());
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldDictionaryCustomOrder, CustomFieldDictionaryCustomOrderEnum.LOW, CustomFieldDictionaryCustomOrderEnum.HIGH, CustomFieldDictionaryCustomOrderEnum.MIDDLE);
        fields.enableFilter(MyExampleDTO_.customFieldDictionaryCustomOrder);
        fields.enableSort(MyExampleDTO_.customFieldDictionaryCustomOrder);

        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
    }

The sorting of drop-down values is determined by the order specified by the developer in the method.

Step 1 Add fields.setEnumValues to corresponding FieldMetaBuilder. Ensure the values are passed in the correct order to achieve the desired sorting.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setEnumValues(MyExampleDTO_.customField, CustomFieldEnum.values());

        fields.setEnumValues(MyExampleDTO_.customFieldDictionaryCustomOrder, CustomFieldDictionaryCustomOrderEnum.MIDDLE, CustomFieldDictionaryCustomOrderEnum.LOW, CustomFieldDictionaryCustomOrderEnum.HIGH);
        fields.setEnabled(MyExampleDTO_.customFieldDictionaryCustomOrder);
    }

The sorting of drop-down values is determined by the order specified by the developer in the method.

Step 1 Add fields.setEnumFilterValues to corresponding FieldMetaBuilder. Ensure the values are passed in the correct order to achieve the desired sorting.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.setEnumFilterValues(fields, MyExampleDTO_.customField, CustomFieldEnum.values());
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldDictionaryCustomOrder, CustomFieldDictionaryCustomOrderEnum.LOW, CustomFieldDictionaryCustomOrderEnum.HIGH, CustomFieldDictionaryCustomOrderEnum.MIDDLE);
        fields.enableFilter(MyExampleDTO_.customFieldDictionaryCustomOrder);
        fields.enableSort(MyExampleDTO_.customFieldDictionaryCustomOrder);

        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
    }

Live Sample · GitHub

see more Sorting

The sorting of values is based on those stored in the database rather than those displayed in the interface.

Step 1 Add fields.enableSort to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.enableSort(MyExampleDTO_.customFieldDictionary);
        fields.enableSort(MyExampleDTO_.customFieldDictionaryExample);
        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionary);
        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionaryExample);

        fields.enableFilter(MyExampleDTO_.customFieldDictionary);
        fields.enableFilter(MyExampleDTO_.customFieldDictionaryExample);

    }

If you use DictionaryProvider. getAll(Class), that delegates to org. cxbox. api. data. dictionary. DictionaryCache, then drop-down values are sorted by display_order, then by key (display_order can be null)

@Configuration
public class DictionaryConfig {

    @Bean
    public DictionaryProvider dictionaryProvider() {
        return new DictionaryProvider() {

            @Override
            public <T extends Dictionary> T lookupName(@NonNull Class<T> type, @NonNull DictionaryValue value) {
                var dictTmp = Dictionary.of(type, "");
                var lov = DictionaryCache.dictionary().lookupName(value.getValue(), dictTmp.getDictionaryType());
                return Dictionary.of(type, lov.getKey());
            }

            @Override
            public <T extends Dictionary> SimpleDictionary lookupValue(@NonNull T dictionary) {
                return DictionaryCache.dictionary().get(dictionary.getDictionaryType(), dictionary.key());
            }

            @Override
            public <T extends Dictionary> Collection<T> getAll(@NonNull Class<T> dictionaryType) {

                if (dictionaryType == CustomDictionarySortingExample.class) {
                    return DictionaryCache.dictionary().getAll(Dictionary.of(dictionaryType, "").getDictionaryType())
                            .stream()
                            .sorted(Comparator.comparing(SimpleDictionary::getKey))
                            .map(e -> Dictionary.of(dictionaryType, e.getKey()))
                            .toList();
                }

                return DictionaryCache.dictionary().getAll(Dictionary.of(dictionaryType, "").getDictionaryType())
                        .stream()
                        .map(e -> Dictionary.of(dictionaryType, e.getKey()))
                        .toList();
            }
        };
    }

}

Live Sample · GitHub

not applicable

not applicable

The sorting of drop-down values is determined by the order specified by the developer in the method.

Step 1 Add fields.setEnumValues to corresponding FieldMetaBuilder. Ensure the values are passed in the correct order to achieve the desired sorting.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setEnumValues(MyExampleDTO_.customField, CustomFieldEnum.values());

        fields.setEnumValues(MyExampleDTO_.customFieldDictionaryCustomOrder, CustomFieldDictionaryCustomOrderEnum.MIDDLE, CustomFieldDictionaryCustomOrderEnum.LOW, CustomFieldDictionaryCustomOrderEnum.HIGH);
        fields.setEnabled(MyExampleDTO_.customFieldDictionaryCustomOrder);
    }

not applicable

not applicable

If you use DictionaryProvider. getAll(Class), that delegates to org. cxbox. api. data. dictionary. DictionaryCache, then drop-down values are sorted by display_order, then by key (display_order can be null)

@Configuration
public class DictionaryConfig {

    @Bean
    public DictionaryProvider dictionaryProvider() {
        return new DictionaryProvider() {

            @Override
            public <T extends Dictionary> T lookupName(@NonNull Class<T> type, @NonNull DictionaryValue value) {
                var dictTmp = Dictionary.of(type, "");
                var lov = DictionaryCache.dictionary().lookupName(value.getValue(), dictTmp.getDictionaryType());
                return Dictionary.of(type, lov.getKey());
            }

            @Override
            public <T extends Dictionary> SimpleDictionary lookupValue(@NonNull T dictionary) {
                return DictionaryCache.dictionary().get(dictionary.getDictionaryType(), dictionary.key());
            }

            @Override
            public <T extends Dictionary> Collection<T> getAll(@NonNull Class<T> dictionaryType) {

                if (dictionaryType == CustomDictionarySortingExample.class) {
                    return DictionaryCache.dictionary().getAll(Dictionary.of(dictionaryType, "").getDictionaryType())
                            .stream()
                            .sorted(Comparator.comparing(SimpleDictionary::getKey))
                            .map(e -> Dictionary.of(dictionaryType, e.getKey()))
                            .toList();
                }

                return DictionaryCache.dictionary().getAll(Dictionary.of(dictionaryType, "").getDictionaryType())
                        .stream()
                        .map(e -> Dictionary.of(dictionaryType, e.getKey()))
                        .toList();
            }
        };
    }

}

not applicable

Required

Live Sample · GitHub

Required allows you to denote, that this field must have a value provided.

How does it look?


not applicable


How to add?

Example

Add fields.setRequired to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
                                      Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setRequired(MyExampleDTO_.customField);
    }

Works for List.

Live Sample · GitHub

not applicable

Works for Form.

Live Sample · GitHub

Additional properties

Icon

(since release 2.0.8)

Live Sample · GitHub

Icons are small graphic symbols used within a user interface to visually represent certain actions, fields, or data types, making the interface more intuitive and easier to navigate. They serve as visual cues to help users quickly identify the purpose of a field without needing to read a title.

Basic

Tips

We recommend avoiding long values for value fields, as filtering sends a string with vallue to the backend, which may be subject to length limitations.

There are two display types icons:

There are two display modes:

Modes

Default Mode

Both icon and text are always shown.

Applies to:

  • Drop-down directory
  • Edit mode/Creation
  • Filtering
How does it look?






How to add?
Example

The frontend display mechanism for icons works as follows:

Icon Value Matching: The frontend needs to have all occurrences of the icon values within a comprehensive tag collection (allValues).

Icon Retrieval: It then takes the specified value from values(see more how_to_add)/filterValues(see more how_to_add and searches for a matching icon value within allValues. This process ensures that icons are displayed based on the specified icon values.

Step 1 Add fields.setEnumIcons to buildIndependentMeta to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.enableFilter(MyExampleDTO_.customFieldMultivalueModeIcon);
        fields.enableFilter(MyExampleDTO_.customFieldMultivalue);
        fields.enableFilter(MyExampleDTO_.customFieldDictionaryInlinePickList);
        fields.enableFilter(MyExampleDTO_.customFieldPickList);
        fields.enableFilter(MyExampleDTO_.customFieldDictionary);
        fields.enableSort(MyExampleDTO_.customFieldDictionary);

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldPickList, CustomFieldDictionaryEnum.values());
        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.values());

        fields.setEnumIcons(MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.iconMap());
        fields.setEnumValues(MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.values());
    }

Step 2 (optional)

Missing mod tag = "mode": "default

Add "mode": "default" to corresponding widget.json.

{
  "name": "MyExampleList",
  "title": "List Mode default",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "Custom Field Dictionary",
      "key": "customFieldDictionary",
      "type": "dictionary",
      "mode": "default"
    }
  ]
}

Step 1 Add fields.setDictionaryValues to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionary);
        fields.setDictionaryIcons(MyExampleDTO_.customFieldDictionary, CustomDictionary.icons);
    }

Step 2 (optional)

Missing mod tag = "mode": "default

Add "mode": "default" to corresponding widget.json.

{
  "name": "MyExampleList",
  "title": "List",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "customField",
      "key": "customFieldDictionary",
      "type": "dictionary"
    }
  ]
}

Step 1 Add fields.setDictionaryTypeWithAllValues to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.enableFilter(MyExampleDTO_.customFieldDictionary);
        fields.enableSort(MyExampleDTO_.customFieldDictionary);
        fields.setDictionaryTypeWithAllValues(MyExampleDTO_.customFieldDictionary, REGIONS);
        Map<LOV, Icon> valueIconMap = Map.of(
                MOSCOW, ARROW_UP,
                SAINT_PETERBURG, DOWN,
                SYKTYVKAR, ARROW_UP_BLUE,
                KOSTROMA, WATERMELON);
        fields.setAllValuesWithIcons(MyExampleDTO_.customFieldDictionary, REGIONS, valueIconMap);
        fields.setAllFilterValuesByLovType(MyExampleDTO_.customFieldDictionary, REGIONS);
    }

Step 2 Missing mod tag = "mode": "default

Add "mode": "default" to corresponding widget.json.

{
  "name": "MyExampleList",
  "title": "List",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customFieldDictionary",
      "type": "dictionary"
    }
  ]
}

Live Sample · GitHub

Icon Mode

Live Sample · GitHub

Only the icon is displayed.

When hovering over the icon, a tooltip appears displaying text that is retrieved from the value.

Applies to:

  • Drop-down directory
  • Edit mode/Creation
  • For filtering, icon and text are always shown.
How does it look?






How to add?
Example

The frontend display mechanism for icons works as follows: allValues tag is filled with values from the icon-to-value mapping directory. Next, we retrieve the value from either values (see how_to_add) or filterValues (see how_to_add) and then search for the matching icon in allValues.

Step 1 Add fields.setEnumIcons to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.enableFilter(MyExampleDTO_.customFieldMultivalueModeIcon);
        fields.enableFilter(MyExampleDTO_.customFieldMultivalue);
        fields.enableFilter(MyExampleDTO_.customFieldDictionaryInlinePickList);
        fields.enableFilter(MyExampleDTO_.customFieldPickList);
        fields.enableFilter(MyExampleDTO_.customFieldDictionary);
        fields.enableSort(MyExampleDTO_.customFieldDictionary);

        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldPickList, CustomFieldDictionaryEnum.values());
        fields.setEnumFilterValues(fields, MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.values());

        fields.setEnumIcons(MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.iconMap());
        fields.setEnumValues(MyExampleDTO_.customFieldDictionary, CustomFieldDictionaryEnum.values());
    }
Step 2 Add "mode": "icon" to corresponding widget.json.
{
  "name": "MyExampleListIconMode",
  "title": "List Mode icon",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "Custom Field Dictionary",
      "key": "customFieldDictionary",
      "type": "dictionary",
      "mode": "icon"
    }
  ]
}

Step 1 Add fields.setDictionaryIcons to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        fields.setDictionaryFilterValues(MyExampleDTO_.customFieldDictionary);
        fields.setDictionaryIcons(MyExampleDTO_.customFieldDictionary, CustomDictionary.icons);
    }

Step 2 Add "mode": "icon" to corresponding widget.json.

{
  "name": "MyExampleListOnlyIcon",
  "title": "List",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "customField",
      "key": "customFieldDictionary",
      "type": "dictionary",
      "mode": "icon"
    }
  ]
}

Step 1 Add fields.setDictionaryTypeWithAllValues to corresponding FieldMetaBuilder.

Step 2 Add "mode": "icon" to corresponding widget.json.

Live Sample · GitHub

Types icons

The workflow logic is to first search for the icon name in the custom icons folder. If the icon is found, it will be used from there; if not, the search will continue in the standard Ant icons folder.

Icon selection logic:

  • Search by icon name in the custom icons folder.
  • If found, use the custom icon.
  • If not found, look in the standard Ant icons folder and use the icon from there.
Standard icons

Cxbox-ui already includes this icon library.

Ant Design icons You can customize the color of the standard icon using a hex color code.

How does it look?



How to add?
Example

Simply copy the icon name and pass it to the method—that's all you need. For example, add

Add standart icon to corresponding Icon. ARROW_UP("arrow-up")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Step 1 Add standart icon to corresponding Enum with icons. ARROW_UP("arrow-up")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Step 1 Add standart icon to corresponding Enum with icons. ARROW_UP("arrow-up")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Add standart icon and hex color code to corresponding Icon.

For example, add

ARROW_UP_BLUE("arrow-up #0cbfe9")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Step 1 Add standart icon and hex color code to corresponding Enum with icons.

For example, add

ARROW_UP_BLUE("arrow-up #0cbfe9")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Step 1 Add standart icon and hex color code to corresponding Enum with icons.

For example, add

ARROW_UP_BLUE("arrow-up #0cbfe9")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Custom icons

Live Sample · GitHub

Custom icons can be uploaded. Icons should be uploaded in SVG format.

How does it look?


How to add?
Example

Step 1 Add icon (watermelon.svg) in folder ui/src/assets/icons/dictionaryCustomIcons

GitHub

Step 2 Create a link to the icon file by adding a reference to ui/src/assets/icons/dictionaryCustomIcons/index.ts

GitHub

    export { ReactComponent as watermelon } from './watermelon.svg'

Step 3 Add custom icon to corresponding Icon. WATERMELON("watermelon")

@RequiredArgsConstructor
@Getter
public enum IconsEnum implements Icon {
    ARROW_UP_BLUE("arrow-up #0cbfe"),
    ARROW_UP("arrow-up"),
    WATERMELON("watermelon"),
    DOWN("down");

    private final String icon;

}

Live Sample · GitHub

Administration dictionary

(since release 2.0.9)

cxbox/core 4.0.0-M12

Live Sample GitHub

This screen allows you to edit and create dictionaries .

To apply the changes, click the "Clear Cache" button on the administration screen and refresh the page on the user screen to re-request the data.

How does it look?


How to add?

Example

  • Step 1. Check for the presence and relevance of the files from the demo project in the conf/cxbox/customization/dictionary folder.

  • Step 2. Check for the presence and relevance of the files from the demo project in the /resources/meta/core/dictionary folder.

Live Sample GitHub

Release

To ensure that user-made changes are not lost during the release process, follow these steps:

  • Button export: Retrieve the format file containing the current reference books from the environment (stand) where the release will be deployed.


  • Match the Files: Compare the downloaded reference file with the release file to ensure consistency and identify any discrepancies. This will help preserve user changes.

  • Proceed with Release: After verifying that the files align correctly, continue with the deployment process, ensuring that user changes are retained in the updated system.
