FileUpload

FileUpload is a component that allows to view and attach single file

Info

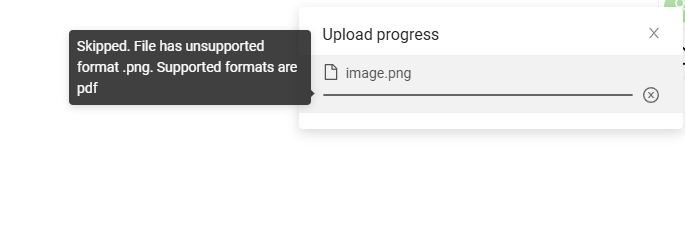

  • When a file is selected, it is stored in the storage system immediately, which then generates a unique "file ID". When the save button is clicked, only this "file ID" is sent to the backend
  • If a new file is selected, it will be saved as a new file in storage. Previous file remains untouched (e.g. one is free to implement custom deletion logic)

Basics

Live Sample · GitHub

How does it look?




How to add?

Example

For the entire application, a single file storage solution needs to be defined. In this example file storage is minio.

Step1 FileStorage Add file storage. see more FileStorage

Step2 Add same String fields to corresponding BaseEntity.

@Entity
@Getter
@Setter
@NoArgsConstructor
public class MyEntity extends BaseEntity {

    @Column
    private String customField;

    @Column
    private String customFieldId;

}

Step3 Add two String fields (for file name and id) to corresponding DataResponseDTO.

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField")
    private String customField;

    @SearchParameter(name = "customFieldId")
    private String customFieldId;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldId = entity.getCustomFieldId();
    }

}

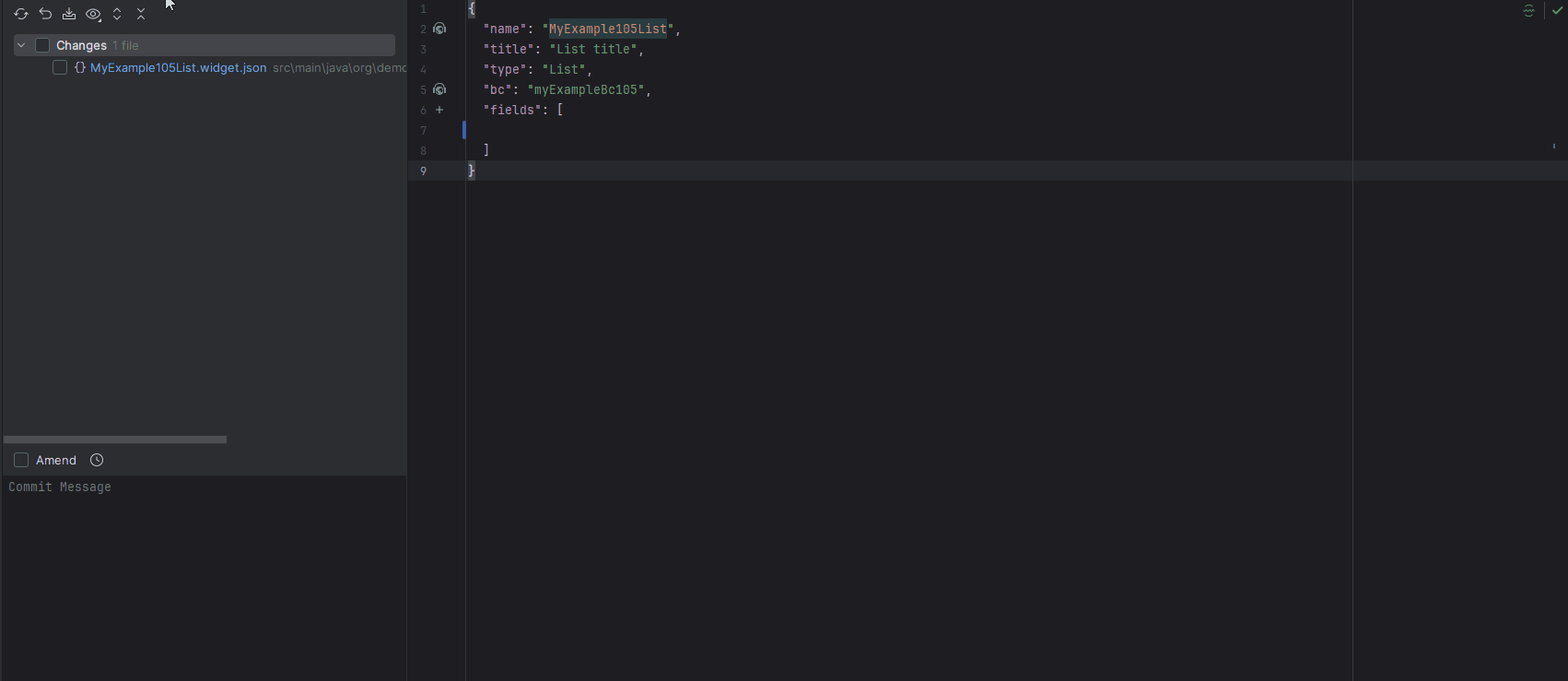

Step4 Add to .widget.json.

{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "fileUpload",
      "fileIdKey": "customFieldId"
    }
  ]
}

Step4 Add to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "fileUpload",
      "fileIdKey": "customFieldId"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Step4 Add to .widget.json.

{
  "name": "MyExampleForm",
  "title": "Form title",
  "type": "Form",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "fileUpload",
      "fileIdKey": "customFieldId"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Placeholder

Live Sample · GitHub

Placeholder allows you to provide a concise hint, guiding users on the expected value. This hint is displayed before any user input. It can be calculated based on business logic of application

How does it look?


not applicable


How to add?

Example

Add fields.setPlaceholder to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customFieldId);
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setPlaceholder(MyExampleDTO_.customField, "Placeholder text");
    }

Works for List.

not applicable

Works for Form.

Color

not applicable

Readonly/Editable

Readonly/Editable indicates whether the field can be edited or not. It can be calculated based on business logic of application

Editable Live Sample · GitHub

Readonly Live Sample · GitHub

How does it look?


not applicable





How to add?

Example

Step1 Add mapping DTO->entity to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customFieldId)) {
            entity.setCustomFieldId(data.getCustomFieldId());
        }
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Step2 Add fields.setEnabled to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        //
    }

Works for List.

not applicable

Works for Form.

Option 1 Enabled by default.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
    }

Option 2 Not recommended. Property fields.setDisabled() overrides the enabled field if you use after property fields.setEnabled.

Works for List.

Works for Info.

Works for Form.

Filtering

Live Sample · GitHub

Filtering allows you to search data based on criteria. For FileUpload field filtering is case-insensitive and retrieves records containing the specified value at any position of file name (similar to SQL Like %value% ).

How does it look?


not applicable

not applicable

How to add?

Example

Step 1 Add @SearchParameter to corresponding DataResponseDTO. (Advanced customization SearchParameter)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField")
    private String customField;

    @SearchParameter(name = "customFieldId")
    private String customFieldId;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldId = entity.getCustomFieldId();
    }

}

Step 2 Add fields.enableFilter to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);
    }

not applicable

not applicable

Drilldown

not applicable

Validation

Validation allows you to check any business rules for user-entered value. There are types of validation:

1) Exception:Displays a message to notify users about technical or business errors.

Business Exception: Live Sample · GitHub

Runtime Exception: Live Sample · GitHub

2) Confirm: Presents a dialog with an optional message, requiring user confirmation or cancellation before proceeding.

Live Sample · GitHub

3) Field level validation: shows error next to all fields, that validation failed for

Option 1: Live Sample · GitHub

Option 2: Live Sample · GitHub

How does it look?

img_business_error

img_runtime_error

confirm_form

img_javax_stat_list

not applicable

img_business_error

img_runtime_error

confirm_form

img_javax_stat_form

How to add?

Example

BusinessException describes an error within a business process.

Add BusinessException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customFieldId)) {
            entity.setCustomFieldId(data.getCustomFieldId());
        }
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
            if (!String.valueOf(data.getCustomField()).matches("[A-Za-z]+")) {
                throw new BusinessException().addPopup(ONLY_LETTER);
            }
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Works for List.

not applicable

Works for Form.

RuntimeException describes technical error within a business process.

Add RuntimeException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customFieldId)) {
            entity.setCustomFieldId(data.getCustomFieldId());
        }
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            try {
                //call custom function
                throw new Exception("Error");
            } catch (Exception e) {
                throw new RuntimeException("An unexpected error has occurred.");
            }
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Works for List.

not applicable

Works for Form.

Add PreAction.confirm to corresponding VersionAwareResponseService.

    @Override
    public Actions<MyExampleDTO> getActions() {
        return Actions.<MyExampleDTO>builder()
                .action(act -> act
                        .action("save", "save")
                        .withPreAction(PreAction.confirm("You want to save the value ?"))
                )
                .build();
    }

Works for List.

not applicable

Works for Form.

Add javax.validation to corresponding DataResponseDTO.

Use if:

Requires a simple fields check (javax validation)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField")
    @Pattern(regexp = "[A-Za-z]+", message = ONLY_LETTER)
    private String customField;

    @SearchParameter(name = "customFieldId")
    private String customFieldId;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
        this.customFieldId = entity.getCustomFieldId();
    }

}

Works for List.

not applicable

Works for Form.

Create сustom service for business logic check.

Use if:

Business logic check required for fields

Step 1 Create сustom method for check.

    private void validateFields(BusinessComponent bc, MyExampleDTO dto) {
        BusinessError.Entity entity = new BusinessError.Entity(bc);
        if (!String.valueOf(dto.getCustomField()).matches("[A-Za-z]+")) {
            entity.addField(MyExampleDTO_.customField.getName(), "The field 'customField' can contain only letters.");
        }
        if (!String.valueOf(dto.getCustomFieldAdditional()).matches("[A-Za-z]+")) {
            entity.addField(
                    MyExampleDTO_.customFieldAdditional.getName(),
                    "The field 'customFieldAdditional' can contain only letters."
            );
        }
        if (entity.getFields().size() > 0) {
                throw new BusinessException().setEntity(entity);
        }
    }

Step 2 Add сustom method for check to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        validateFields(bc, data);
        if (data.isFieldChanged(MyExampleDTO_.customFieldAdditionalId)) {
            entity.setCustomFieldAdditionalId(data.getCustomFieldAdditionalId());
        }
        if (data.isFieldChanged(MyExampleDTO_.customFieldAdditional)) {
            entity.setCustomFieldAdditional(data.getCustomFieldAdditional());
        }
        if (data.isFieldChanged(MyExampleDTO_.customFieldId)) {
            entity.setCustomFieldId(data.getCustomFieldId());
        }
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Sorting

Live Sample · GitHub

Sorting allows you to sort data in ascending or descending order. FileUpload field is a text field, so lexicographic sorting is used for it

How does it look?

img_sort_list

not applicable

not applicable

How to add?

Example

Enabled by default.

not applicable

not applicable

Required

Live Sample · GitHub

Required allows you to denote, that this field must have a value provided.

How does it look?


not applicable


How to add?

Example

Add fields.setRequired to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customFieldId);
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setRequired(MyExampleDTO_.customField);
    }

Works for List.

not applicable

Works for Form.
