Export to Excel

Export to Excel enables users to download a .xlsx file containing the table's data.

This function is available:

  • for widgets: List,only mode basic AdditionalList,GroupingHierarchy.
  • for fields: Hint, Multivalue, Inline, Pick List,Radio, Money, Percent, Number, Dictionary, Date Time With Seconds, Date, Checkbox, Date Time, Text, Input. See more field types

The export functionality is accessible via the gear icon and supports the following types:

Live Sample · GitHub

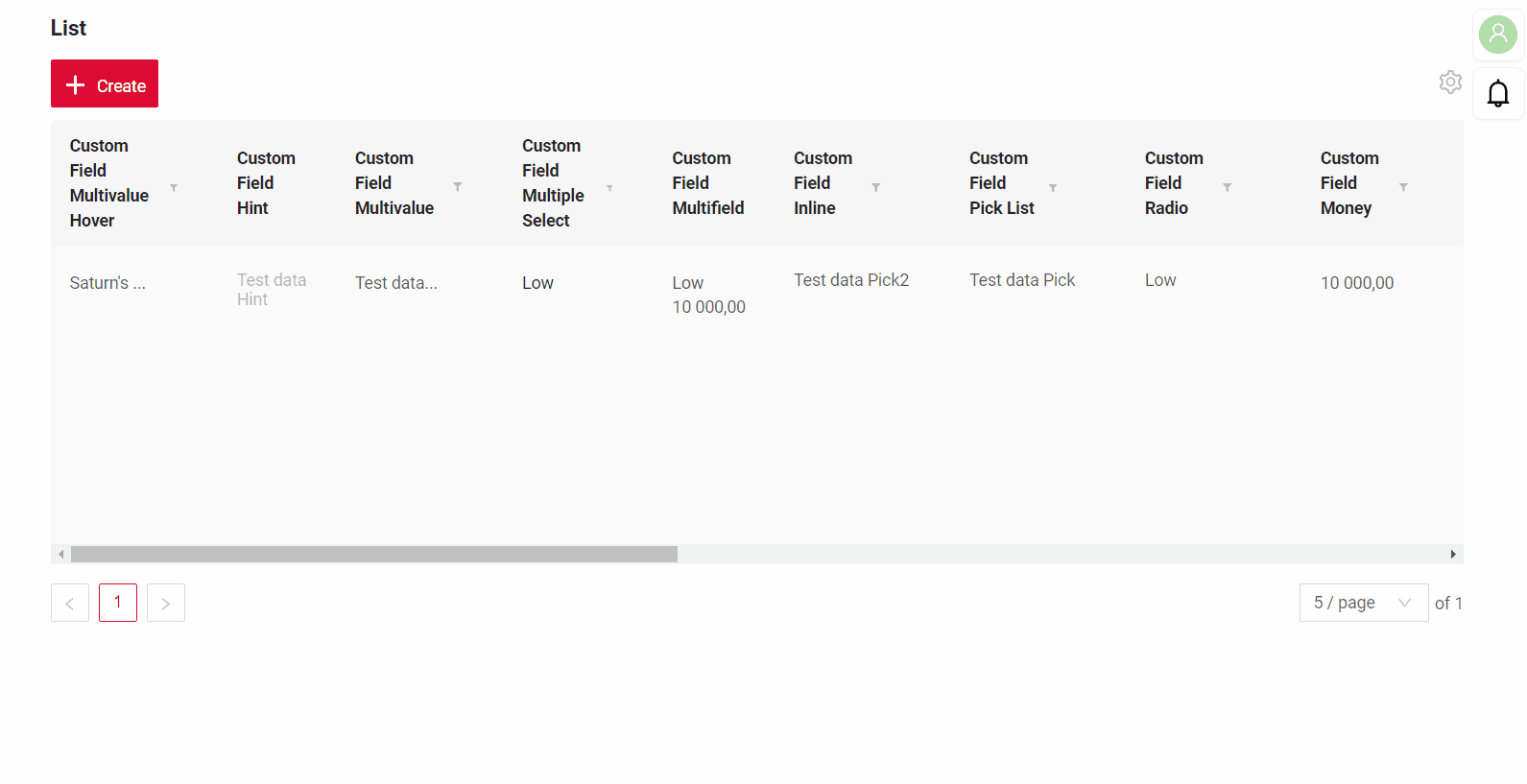

  • Inner source. Exports data retrieved directly from the database.

Live Sample · GitHub

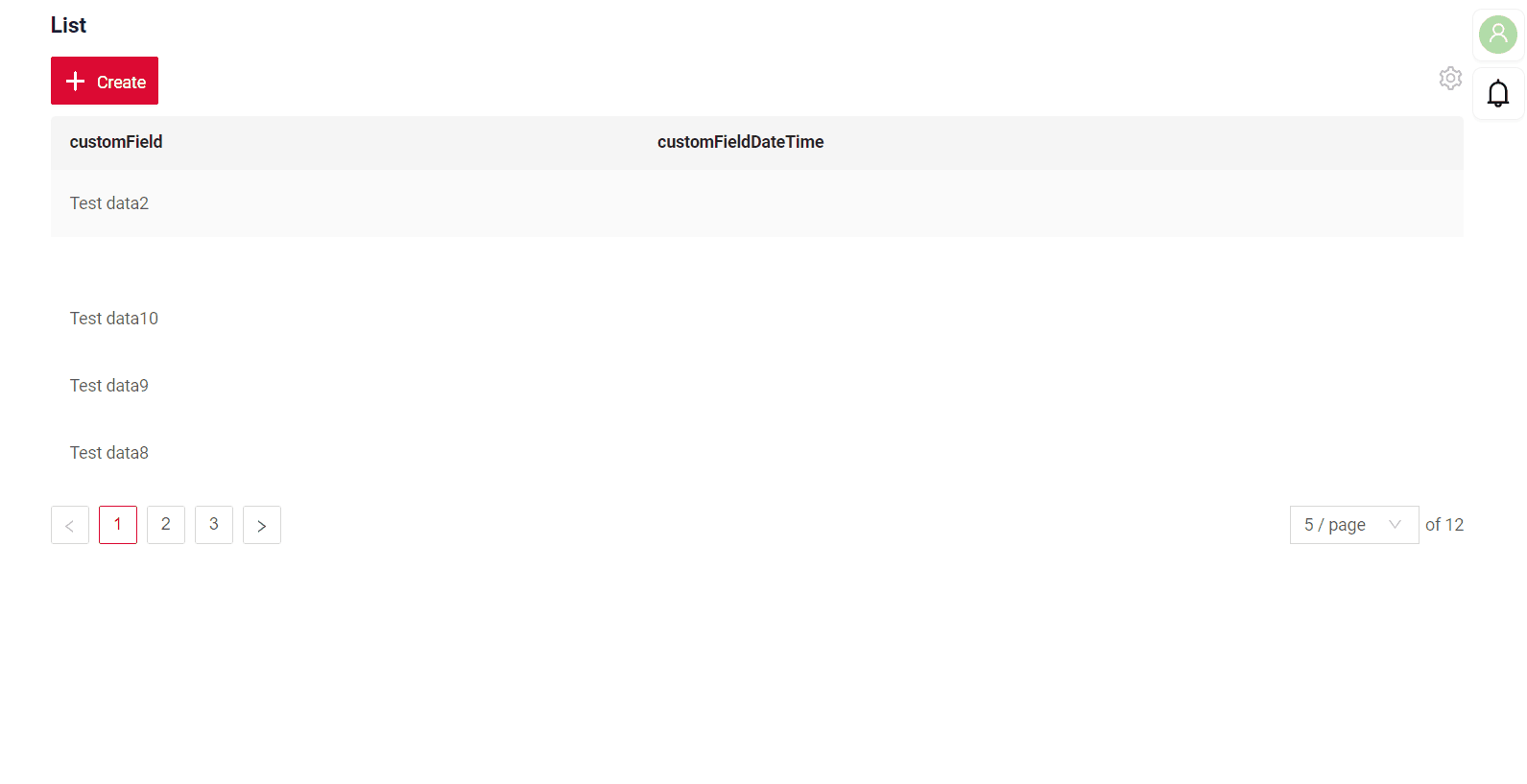

  • Any source. Exports data obtained from microservices or other external sources.

Live Sample · GitHub

  • Filtration. Exports only the filtered data based on the user's applied filters.

Basic

The Export function includes two parameters:

  • Enabled - true/false
  • Title: None/Custom Name If the parameter is not specified, a default title is generated with the format: List + current date.

Example: List 05-12-2024.xlsx A custom title can be provided if needed.

How does it look?




How to add?

Example

Add export to corresponding widget.json.

"export": {
  "enabled": true,
  "title": "Custom Name"
}

{
  "name": "MyExampleList",
  "title": "Widget property Excel inner source - List",
  "type": "List",
  "bc": "myexample",
  "fields": [
    {
      "title": "Custom Field Percent",
      "key": "customFieldPercent",
      "type": "percent"
    },
    {
      "title": "Custom Field Number",
      "key": "customFieldNumber",
      "type": "number"
    },
    {
      "title": "Custom Field Dictionary",
      "key": "customFieldDictionary",
      "type": "dictionary"
    }
  ],
  "options": {
    "export": {
      "enabled": true,
      "title": "Custom Name"
    }
  }
}
