CheckBox

Field CheckBox allows the user to make a binary choice.

Basics

Live Sample · GitHub

How does it look?

List widgetInfo widgetFormwidget

How to add?

Example

With plugin(recommended)Example of writing code

Step 1 Download plugin download Intellij Plugin

Step 2 Add existing field to an existing form widget

Step1 Add field Boolean to corresponding BaseEntity.

@Entity
@Getter
@Setter
@NoArgsConstructor
public class MyEntity extends BaseEntity {

    @Column
    private Boolean customField;

}

Step2 Add field Boolean to corresponding DataResponseDTO.

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = BooleanValueProvider.class)
    private Boolean customField;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
    }

}

List widgetInfo widgetForm widget

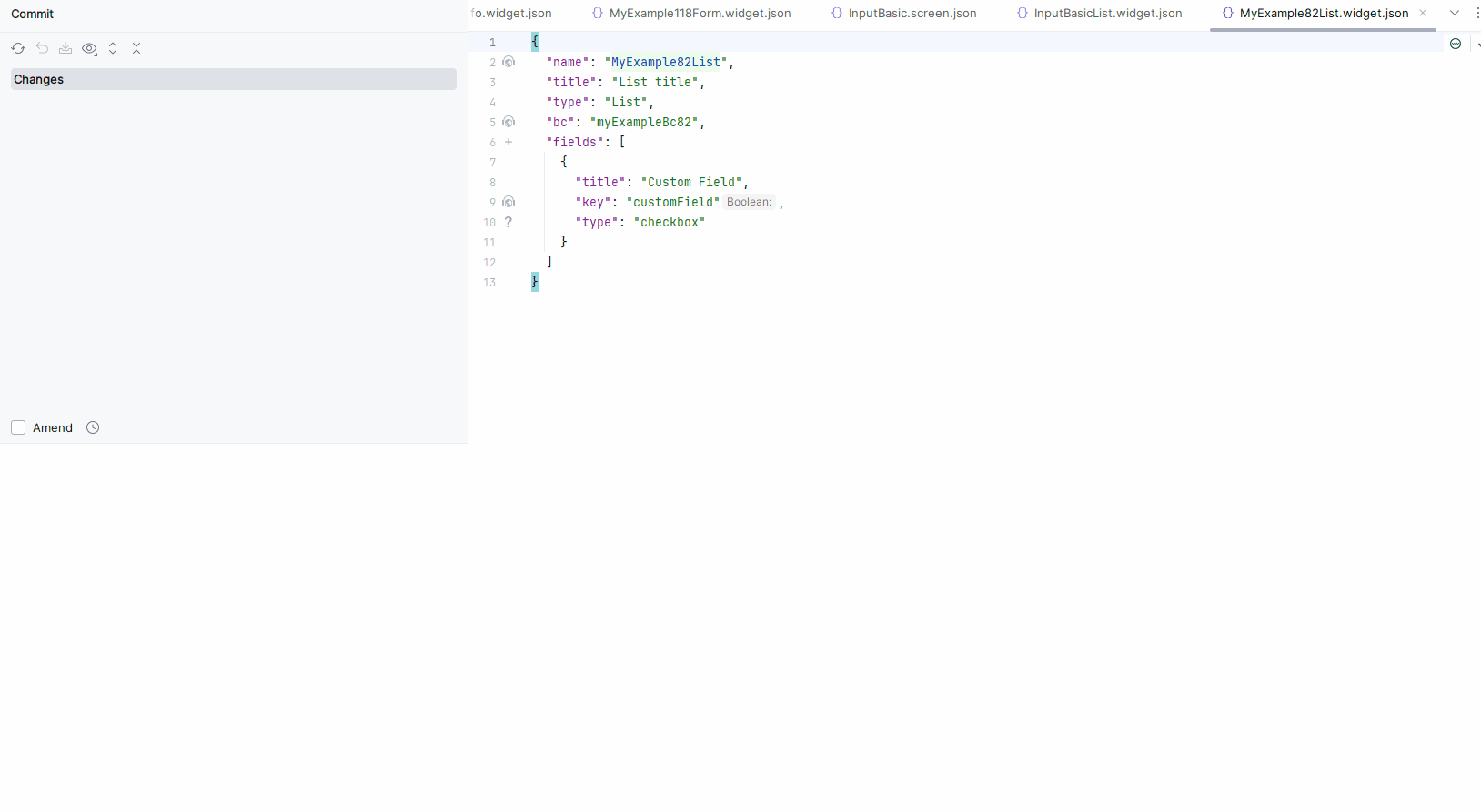

Step3 Add to .widget.json.

{
  "name": "MyExampleList",
  "title": "List title",
  "type": "List",
  "bc": "myExampleBc",
  "fields": [
    {
      "title": "Custom Field",
      "key": "customField",
      "type": "checkbox"
    }
  ]
}

Step3 Add to .widget.json.

{
  "name": "MyExampleInfo",
  "title": "Info title",
  "type": "Info",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "checkbox"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Step3 Add to .widget.json.

{
  "name": "MyExampleForm",
  "title": "Form title",
  "type": "Form",
  "bc": "myExampleBc",
  "fields": [
    {
      "label": "Custom Field",
      "key": "customField",
      "type": "checkbox"
    }
  ],
  "options": {
    "layout": {
      "rows": [
        {
          "cols": [
            {
              "fieldKey": "customField",
              "span": 12
            }
          ]
        }
      ]
    }
  }
}

Live Sample · GitHub

Placeholder

Live Sample · GitHub

Placeholder allows you to provide a concise hint, guiding users on the expected value. This hint is displayed before any user input. It can be calculated based on business logic of application.

How does it look?

List widgetInfo widgetForm widget

_

How to add?

Example

Add fields.setPlaceholder to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setPlaceholder(MyExampleDTO_.customField, "Text Placeholder");
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

Color

not applicable

Readonly/Editable

Readonly/Editable indicates whether the field can be edited or not. It can be calculated based on business logic of application

Editable Live Sample · GitHub

Readonly Live Sample · GitHub

How does it look?

EditableEditable

List widgetInfo widgetForm widget

not applicable

List widgetInfo widgetForm widget

How to add?

Example

EditableReadonly

Step1 Add mapping DTO->entity to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Step2 Add fields.setEnabled to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

Option 1 Enabled by default.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
    }

Option 2 Not recommended. Property fields.setDisabled() overrides the enabled field if you use after property fields.setEnabled.

List widgetInfo widgetForm widget

Works for List.

Works for Info.

Works for Form.

Live Sample · GitHub

Filtering

Live Sample · GitHub

Filtering allows you to search data based on criteria. Search uses in operator.

How does it look?

List widgetInfo widgetForm widget

not applicable

not applicable

`

How to add?

Example

List widgetInfo widgetForm widget

Step 1 Add @SearchParameter to corresponding DataResponseDTO. (Advanced customization SearchParameter)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = BooleanValueProvider.class)
    private Boolean customField;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
    }

}

Step 2 Add fields.enableFilter to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {
        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);
    }

Live Sample · GitHub

not applicable

not applicable

Drilldown

not applicable

Validation

Validation allows you to check any business rules for user-entered value. There are types of validation:

1) Exception:Displays a message to notify users about technical or business errors.

Business Exception: Live Sample · GitHub

Runtime Exception: Live Sample · GitHub

2) Confirm: Presents a dialog with an optional message, requiring user confirmation or cancellation before proceeding.

Live Sample · GitHub

3) Field level validation: shows error next to all fields, that validation failed for

Option 1: Live Sample · GitHub

Option 2: Live Sample · GitHub

How does it look?

List widgetInfo widgetForm widget

BusinessExceptionRuntimeExceptionConfirmField level validation

not applicable

BusinessExceptionRuntimeExceptionConfirmField level validation

How to add?

Example

BusinessExceptionRuntimeExceptionConfirmField level validation

BusinessException describes an error within a business process.

Add BusinessException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            if (Boolean.FALSE.equals(data.getCustomField())) {
                throw new BusinessException().addPopup(ONLY_TRUE);
            }
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

RuntimeException describes technical error within a business process.

Add RuntimeException to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            try {
                //call custom function
                throw new Exception("Error");
            } catch (Exception e) {
                throw new RuntimeException("An unexpected error has occurred.");
            }
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

Add PreAction.confirm to corresponding VersionAwareResponseService.

    @Override
    public Actions<MyExampleDTO> getActions() {
        return Actions.<MyExampleDTO>builder()
                .action(act -> act
                        .action("save", "save")
                        .withPreAction(PreAction.confirm("You want to save the value ?"))
                )
                .build();
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

Option 1Option 2

Use if:

Requires a simple fields check (javax validation)

@Getter
@Setter
@NoArgsConstructor
public class MyExampleDTO extends DataResponseDTO {

    @SearchParameter(name = "customField", provider = BooleanValueProvider.class)
    @AssertTrue(message = ONLY_TRUE)
    private Boolean customField;

    public MyExampleDTO(MyEntity entity) {
        this.id = entity.getId().toString();
        this.customField = entity.getCustomField();
    }

}

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.

Live Sample · GitHub

Create сustom service for business logic check.

Use if:

Business logic check required for fields

Step 1 Create сustom method for check.

    private void validateFields(BusinessComponent bc, MyExampleDTO dto) {
        BusinessError.Entity entity = new BusinessError.Entity(bc);
        if (Boolean.FALSE.equals(dto.getCustomField())) {
            entity.addField(MyExampleDTO_.customField.getName(), "The field 'customField' can contain only 'True");
        }
        if (Boolean.FALSE.equals(dto.getCustomFieldAdditional())) {
            entity.addField(
                    MyExampleDTO_.customFieldAdditional.getName(),
                    "The field 'customFieldAdditional' can contain only 'True"
            );
        }
        if (!entity.getFields().isEmpty()) {
                throw new BusinessException().setEntity(entity);
        }
    }

Step 2 Add сustom method for check to corresponding VersionAwareResponseService.

    @Override
    protected ActionResultDTO<MyExampleDTO> doUpdateEntity(MyEntity entity, MyExampleDTO data,
            BusinessComponent bc) {
        validateFields(bc, data);
        if (data.isFieldChanged(MyExampleDTO_.customFieldAdditional)) {
            entity.setCustomFieldAdditional(data.getCustomFieldAdditional());
        }
        if (data.isFieldChanged(MyExampleDTO_.customField)) {
            entity.setCustomField(data.getCustomField());
        }

        return new ActionResultDTO<>(entityToDto(bc, entity));
    }

Live Sample · GitHub

Sorting

Live Sample · GitHub

Sorting allows you to sort data in ascending or descending order.

How does it look?

List widgetInfo widgetForm widget

not applicable

not applicable

How to add?

Example

List widgetInfo widgetForm widget

see more Sorting

Step 1 Add fields.enableSort to corresponding FieldMetaBuilder.

    @Override
    public void buildIndependentMeta(FieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription, Long parentId) {

        if (configuration.getForceActiveEnabled()) {
            fields.setForceActive(MyExampleDTO_.customField);
        }
        fields.enableFilter(MyExampleDTO_.customField);
        fields.enableSort(MyExampleDTO_.customField);
    }

Live Sample · GitHub

not applicable

not applicable

Required

Live Sample · GitHub

Required allows you to denote, that this field must have a value provided.

How does it look?

List widgetInfo widgetForm widget

not applicable

How to add?

Example

Add fields.setRequired to corresponding FieldMetaBuilder.

    @Override
    public void buildRowDependentMeta(RowDependentFieldsMeta<MyExampleDTO> fields, InnerBcDescription bcDescription,
            Long id, Long parentId) {
        fields.setEnabled(MyExampleDTO_.customField);
        fields.setRequired(MyExampleDTO_.customField);
    }

List widgetInfo widgetForm widget

Works for List.

not applicable

Works for Form.
