Work with DAO

GET

count (Only for pagination: default, nextAndPreviousWithCount)

Operation /row-meta /row-meta-new /row-meta/id /data/ /count
Open Screen ✅
no records		 ❌ ✅ ✅ ✅
Create ❌ ✅ ❌ ❌ ❌
Save ❌ ❌ ✅ ❌ ❌
Delete ✅
no records		 ❌ ✅ ✅ ❌
Click .. ✅ ❌ ❌ ❌ ❌
Open Assoc,
Popup		 ✅ ❌ ❌ ✅ ✅
Open Form Popup ❌ ❌ ❌ ❌ ❌
Force Active ❌ ❌ ❌ ❌ ❌

Other

Operation POST
/row-meta/id		 PUT
/data/id		 DELETE
/data/id
Open Screen ❌ ❌ ❌
Create ❌ ❌ ❌
Save ❌ ✅ ❌
Delete ❌ ❌ ✅
Click .. ❌ ❌ ❌
Open Assoc,
Popup		 ❌ ❌ ❌
Open Form Popup ✅ ❌ ❌
Force Active ✅ ❌ ❌

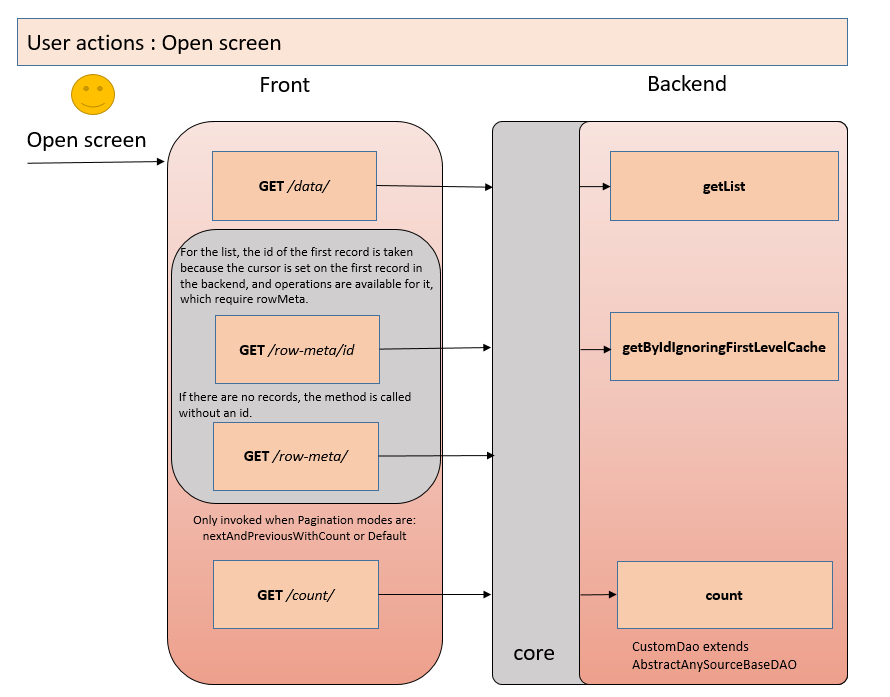

Opening Screen

Live Sample ·

/row-meta/id

For the list, the id of the first record is taken because the cursor is set on the first record in the backend, and operations are available for it, which require rowMeta.

/row-meta/

If there are no records, the method is called without an ID.

/count/

Only invoked when Pagination modes are: nextAndPreviousWithCount or Default

sequenceDiagram
    Frontend->>Backend: GET /api/v1/data/
    Frontend->>Backend: GET /api/v1/row-meta (only if no records)
    Frontend->>Backend: GET /api/v1/row-meta/id
    Frontend->>Backend: GET /api/v1/count (Only for pagination: default, nextAndPreviousWithCount)

API -> DAO


CRUD Operations

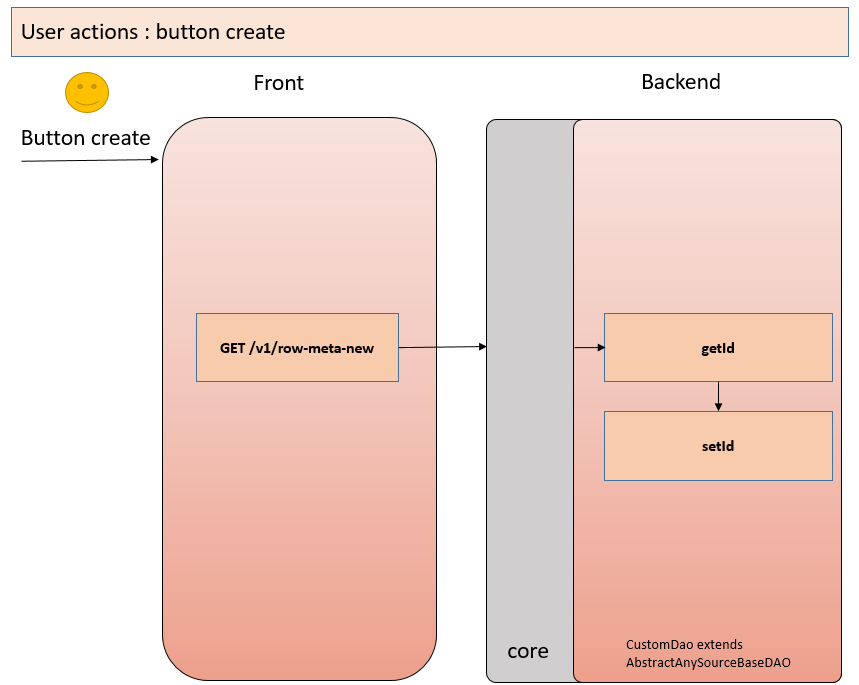

Create

User actions: Create

Process:

sequenceDiagram
    Frontend->>Backend: GET /api/v1/row-meta-new

Used methods:

  • getId() (using FirstLevelCache)
  • setId() (using FirstLevelCache)

Recommendation: Use standard CXBOX mechanism for record storage and calling external systems.

API -> DAO

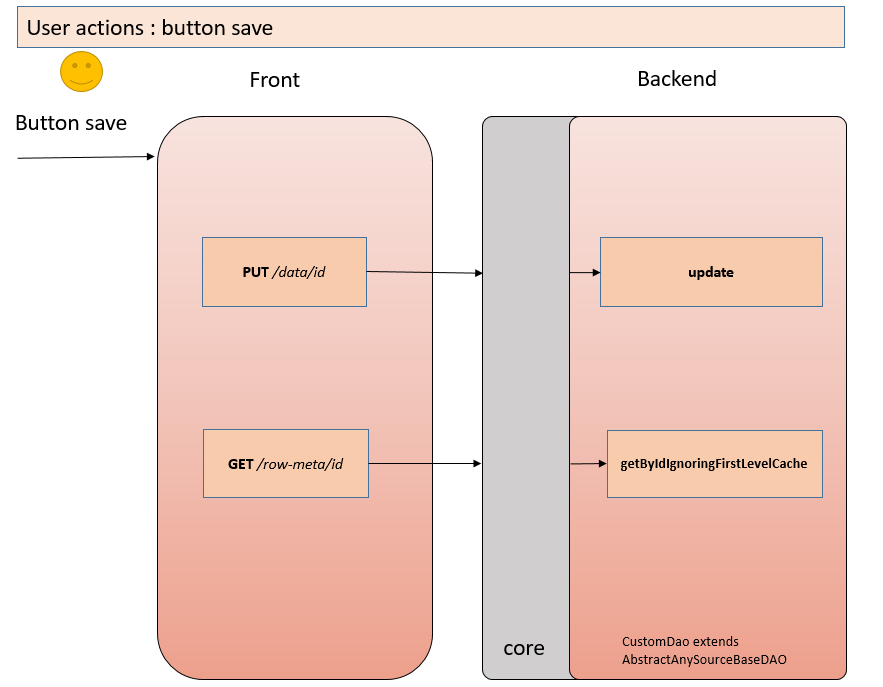

Save

User actions: Save

Process:

sequenceDiagram
    Frontend->>Backend: PUT /api/v1/data/id
    Frontend->>Backend: GET /api/v1/row-meta/id

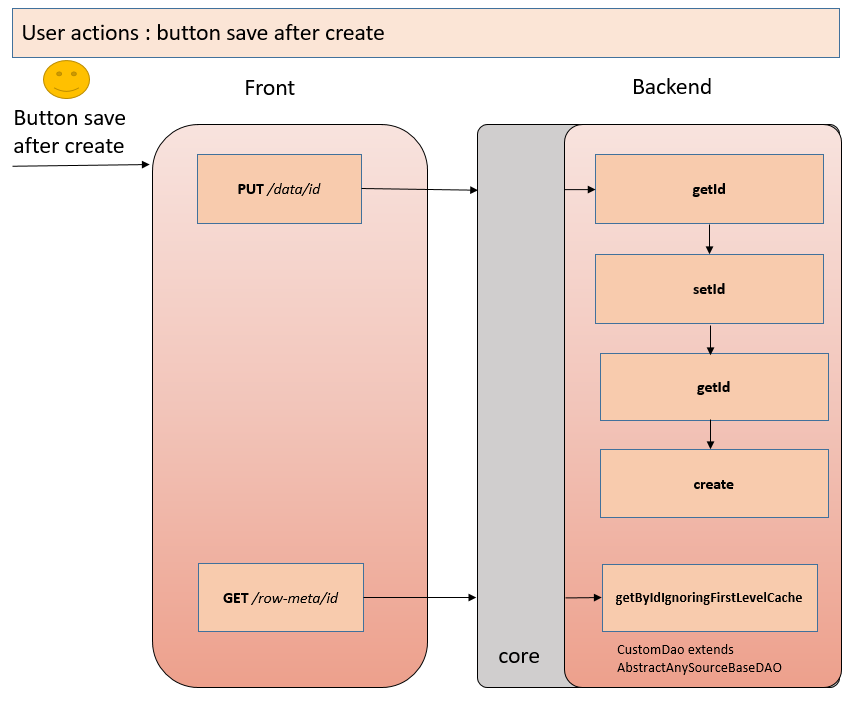

Used methods:

Frontend->>Backend: PUT /api/v1/data/id

  • getId() (using FirstLevelCache)
  • setId() (using FirstLevelCache)
  • getId() (using FirstLevelCache)
  • create()
  • update()

Frontend->>Backend: GET /api/v1/row-meta/id

  • getByIdIgnoringFirstLevelCache()
API -> DAO

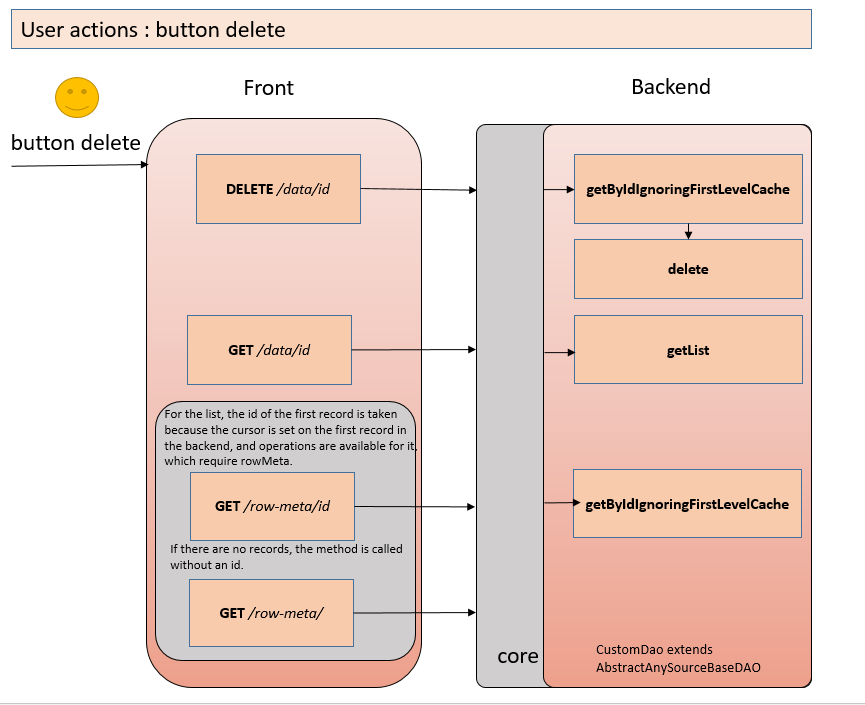

Delete

User actions: Delete

Process:

sequenceDiagram
    Frontend->>Backend: DELETE /api/v1/data/id
    Frontend->>Backend: GET /api/v1/data/
    Frontend->>Backend: GET /api/v1/row-meta (only if no records)
    Frontend->>Backend: GET /api/v1/row-meta/id

Used methods:

Frontend->>Backend: DELETE /api/v1/data/id

  • delete()
  • getList()
  • getByIdIgnoringFirstLevelCache()
API -> DAO
