Steps

Steps widget is used to define and manage sequential actions or stages within a business process in the application. They allow developers and users to structure complex behavior into smaller, manageable steps, improving readability, maintainability.

Basics

Live Sample · GitHub

How does it look?


How to add?

Example

Step1 Create file .widget.json. with type = "Steps"

{
  "name": "myExampleStep",
  "title": "Step",
  "type": "Steps",
  "bc": "myexample",
  "fields": [
    {
      "label": "Description",
      "key": "description",
      "type": "input"
    },
    {
      "label": "editStep",
      "key": "editStep",
      "type": "input"
    }
  ],
  "options": {
    "stepsOptions": {
      "stepsDictionaryKey": "editStep",
      "descriptionFieldKey": "description"
    }
  }
}
Step2 Add widget to corresponding *.view.json* .

{
  "name": "myexamplestep",
  "title": "My task step 1",
  "template": "DashboardView",
  "url": "/screen/myexample/view/myexamplestep",
  "widgets": [
    {
      "widgetName": "myExampleStep",
      "position": 10,
      "gridWidth": 12
    },
    {
      "widgetName": "myExampleForm",
      "position": 20,
      "gridWidth": 24
    }
  ],
  "rolesAllowed": [
    "CXBOX_USER"
  ]
}

Live Sample · GitHub

Title

This widget type does not support Title

Business component

This specifies the business component (BC) to which this form belongs. A business component represents a specific part of a system that handles a particular business logic or data.

see more Business component

Show condition

This widget type does not support Show condition

Fields

Fields Configuration. The fields array defines the individual fields present within the form.

{
    "label": "Custom Field",
    "key": "customField",
    "type": "input"
}
  • "label"

Description: Field Title.

Type: String(optional).

  • "key"

Description: Name field to corresponding DataResponseDTO.

Type: String(required).

  • "type"

Description: Field types

Type: String(required).

How to add?

Example

Step 1 Download plugin download Intellij Plugin

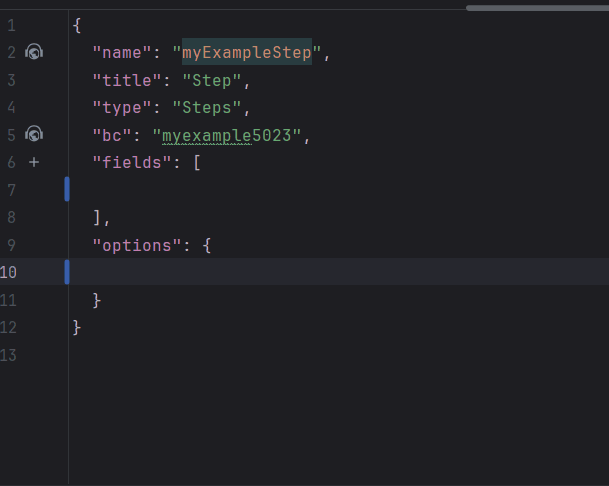

Step 2 Add existing field to an existing form widget addfield.gif

Add field to .widget.json.

   {
     "name": "myExampleStep",
     "title": "Step",
     "type": "Steps",
     "bc": "myexample",
     "fields": [
       {
         "label": "Description",
         "key": "description",
         "type": "input"
       },
       {
         "label": "editStep",
         "key": "editStep",
         "type": "input"
       }
     ],
     "options": {
       "stepsOptions": {
         "stepsDictionaryKey": "editStep",
         "descriptionFieldKey": "description"
       }
     }
   }

see more Fields

Options layout

This widget type does not support Options layout

Actions

This widget type does not support buttons
